ZAP 100

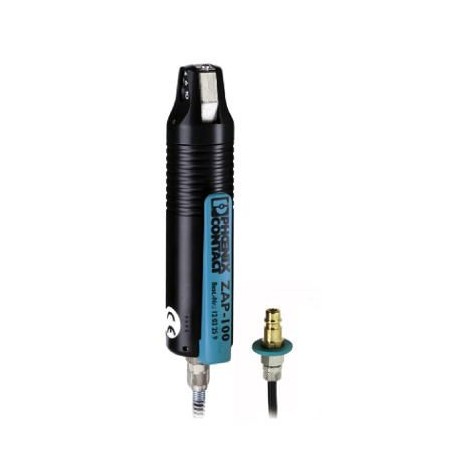

ZAP 100 1203259 PHOENIX CONTACT Pneumatic crimping tool
$0.00USD
4258 in stock
Key Specifications
GTIN:4017918018146
Note:Made to Order (non-returnable)
Orderkey:1203259
Catalog page:Page 509 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918018146 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1203259 |
| Catalog page | Page 509 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Weight (Dimensions) | 0.4 kg |
| Custom tariff number | 84671900 |
| Compression (Dimensions) | trapezoidal |
| Pressure range (Dimensions) | 4 bar ... 6 bar |
| Power consumption (Dimensions) | 0 W |
| Max. cross section (Dimensions) | 10 mm² |
| Min. cross section (Dimensions) | 4 mm² |
| Width (a) (Key Commercial Data) | 44 mm |
| Height (c) (Key Commercial Data) | 44 mm |
| Length (b) (Key Commercial Data) | 200 mm |
| Weight per Piece (excluding packing) | 711.800 g |
| Stripping length (Key Commercial Data) | 0 mm |
| Air consumption per compression (Dimensions) | 0.2 l |
| AWG max., flexible, multi-strand (Dimensions) | 12 |
| Min. AWG, flexible, multi-strand (Dimensions) | 8 |
Product Description
Pneumatically operated crimping pliers, for ferrules in accordance with DIN 46228-1: 1992-08 and DIN 46228-4: 1990-09, for conductor cross-section of 4 - 10 mm²
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
