WIREFOX 10 CUS

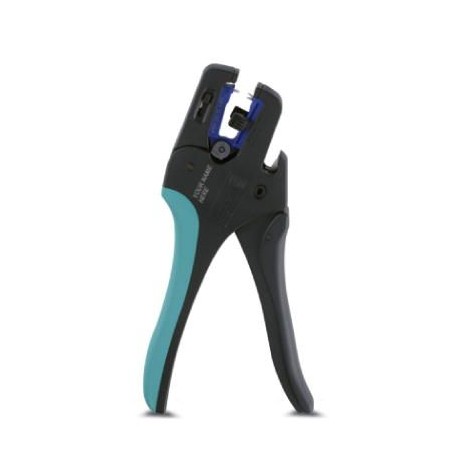

WIREFOX 10 CUS 1212760 PHOENIX CONTACT Stripping tool
$0.00USD
3026 in stock
Key Specifications
GTIN:4046356942768
Note:Made to Order (non-returnable)
Orderkey:1212760
Catalog page:Page 475 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356942768 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1212760 |
| Catalog page | Page 475 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | SE (Sweden) |
| Color (Dimensions) | black/green |
| Weight (Dimensions) | 136 g |
| AWG max (Dimensions) | 8 |
| AWG min (Dimensions) | 34 |
| Custom tariff number | 82032000 |
| Max. cross section (Dimensions) | 10 mm² |
| Min. cross section (Dimensions) | 0.02 mm² |
| Width (a) (Key Commercial Data) | 20 mm |
| Height (c) (Key Commercial Data) | 90 mm |
| Length (b) (Key Commercial Data) | 191 mm |
| California Proposition 65 (General) | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
| Cable diameter (Key Commercial Data) | 0.1 mm ... 3.7 mm |
| Weight per Piece (excluding packing) | 207.900 g |
| Stripping length (Key Commercial Data) | 18 mm |
Product Description
Laser labelled wire stripper according to customer instructions, for cables and conductors 0.02 - 10 mm², self-adjusting, stripping length up to 18 mm, cutting capacity up to 10 mm² flexible / 1.5 mm²
