VAL-US 60/2+0/1U/FM

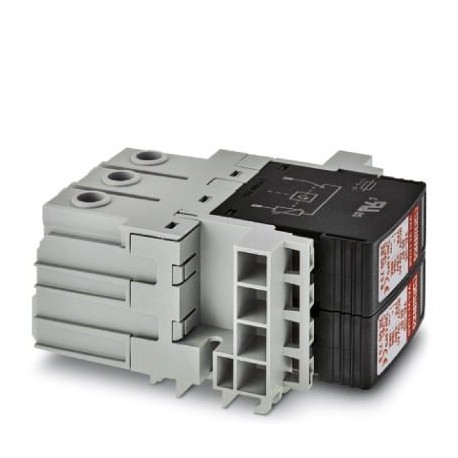

VAL-US 60/2+0/1U/FM 2907043 PHOENIX CONTACT Type 2 surge arrester
$0.00USD
3488 in stock
Key Specifications
GTIN:4055626248981
Note:Made to Order (non-returnable)
Orderkey:2907043
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626248981 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2907043 |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Connection data) | (L-) - G |
| Custom tariff number | 85363030 |
| (Ambient conditions) | PBT |
| (Protective circuit) | 1 A (30 V DC) |
| (UL connection data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Type (Ambient conditions) | DIN rail module, two-section, divisible |
| (Additional descriptions) | ≤ 0.275 kV (at 3 kA) |
| Color (Ambient conditions) | gray |
| SPD Type (Connection data) | 4CA |
| Depth (Key Commercial Data) | 85.6 mm |
| Width (Key Commercial Data) | 70.6 mm |
| EN type (Ambient conditions) | T2 |
| Height (Key Commercial Data) | 40.6 mm |
| (Indicator/remote signaling) | 10 ... 2 (UL) |
| Shock (operation) (Dimensions) | 30g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| China RoHS (UL connection data) | Environmentally Friendly Use Period = 50 |
| Degree of protection (Dimensions) | IP20 (only when all terminal points are used) |
| Height unit (Key Commercial Data) | 1 U |
| Nominal voltage (Connection data) | 60 V DC |
| Mounting type (Ambient conditions) | Panel mount |
| Vibration (operation) (Dimensions) | 7.5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Mode of protection (Connection data) | N-G |
| Weight per Piece (excluding packing) | 222.220 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Operating current (UL specifications) | 1 A AC |
| Operating voltage (UL specifications) | 125 V AC |
| Stripping length (Protective circuit) | 6 mm |
| Connection method (Protective circuit) | Push-in spring connection |
| Operating current (Protective circuit) | 5 mA AC ... 1.5 A |
| Operating voltage (Protective circuit) | 5 V AC ... 250 V AC |
| Mode of protection (Ambient conditions) | L-PE |
| Switching function (Protective circuit) | PDT contact |
| Degree of pollution (Ambient conditions) | 2 |
| Screw thread (Indicator/remote signaling) | M5 |
| Response time tA (Additional descriptions) | ≤ 25 ns |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| IEC power supply system (Ambient conditions) | TN-S |
| IEC test classification (Ambient conditions) | II |
| Nominal voltage UN (Additional descriptions) | -48 V DC ±10 % (RRH) |
| TOV behavior at UT (Additional descriptions) | 100 V AC (5 s / withstand mode) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % |
| Stripping length (Indicator/remote signaling) | 16 mm |
| Connection method (Indicator/remote signaling) | Screw connection |
| Nominal frequency fN (Additional descriptions) | 50 Hz (60 Hz) |
| Residual current IPE (Additional descriptions) | ≤ 0.45 mA |
| Tightening torque (Indicator/remote signaling) | 2.5 Nm ... 3 Nm |
| Conductor cross section AWG (UL specifications) | 30 ... 14 |
| Rated load current IL (Additional descriptions) | 80 A |
| Residual voltage Ures (Additional descriptions) | ≤ 0.55 kV (at In) |
| Conductor cross section AWG (Protective circuit) | 24 ... 20 (UL) |
| Tightening torque (UL indicator/remote signaling) | 22 lbf-in. ... 26.5 lbf-in. |
| Surge protection fault message (Ambient conditions) | Optical, remote indicator contact |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
| Voltage protection level Up (Additional descriptions) | ≤ 0.55 kV |
| Standby power consumption PC (Additional descriptions) | ≤ 35 mVA |
| Conductor cross section solid max. (Protective circuit) | 0.5 mm² |
| Conductor cross section solid min. (Protective circuit) | 0.14 mm² |
| Maximum continuous voltage UC (Additional descriptions) | 75 V AC |
| Conductor cross section AWG (Indicator/remote signaling) | 15 ... 2 |
| Conductor cross section flexible max. (Protective circuit) | 0.5 mm² |
| Conductor cross section flexible min. (Protective circuit) | 0.2 mm² |
| Conductor cross section AWG (UL indicator/remote signaling) | 10 ... 2 |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Short-circuit current rating ISCCR (Additional descriptions) | 25 kA |
| Max. backup fuse with branch wiring (Additional descriptions) | 160 A AC (gG) |
| Conductor cross section solid max. (Indicator/remote signaling) | 35 mm² |
| Conductor cross section solid min. (Indicator/remote signaling) | 1.5 mm² |
| Nominal discharge current In(8/20) µs (Additional descriptions) | 15 kA |
| Maximum continuous operating voltage MCOV (L-N) (Connection data) | 75 V AC |
| Conductor cross section flexible max. (Indicator/remote signaling) | 25 mm² |
| Conductor cross section flexible min. (Indicator/remote signaling) | 1.5 mm² |
| Maximum discharge current Imax(8/20) µs (Additional descriptions) | 40 kA |
| Max. backup fuse with V-type through wiring (Additional descriptions) | 80 A AC (gG - 16 mm²) |
Product Description
Universal plug-in surge and lightning current protection device equipped with varistors for 48–60 V DC applications with two conductors and grounding, with remote indication contact
