VAL-MS-BE-PCB-FM

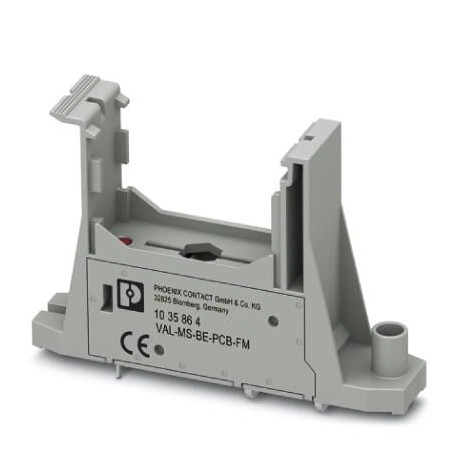

VAL-MS-BE-PCB-FM 1035864 PHOENIX CONTACT Surge protection base element VAL-MS-BE-PCB-FM 1035864
$0.00USD
3843 in stock
Key Specifications
GTIN:4055626542430
Note:Made to Order (non-returnable)
Orderkey:1035864
Packing unit:10 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626542430 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1035864 |
| Packing unit | 10 pc |
| (Dimensions) | 3000 m () |
| Country of origin | CN (China) |
| ETIM 5.0 (eCl@ss) | EC000472 |
| ETIM 6.0 (eCl@ss) | EC000472 |
| Custom tariff number | 85363010 |
| (Protective circuit) | 1 A DC |
| Altitude (Dimensions) | 5000 m (basic insulation) |
| Minimum order quantity | 10 pc |
| Color (Ambient conditions) | traffic grey A RAL 7042 |
| Depth (Key Commercial Data) | 53 mm (Without pin length) |
| Width (Key Commercial Data) | 20 mm |
| EN type (Ambient conditions) | T1 / T2 |
| Height (Key Commercial Data) | 88 mm |
| eCl@ss 8.0 (Classifications) | 27130803 |
| eCl@ss 9.0 (Classifications) | 27130803 |
| (Indicator/remote signaling) | EN 50539-11 2013 |
| Shock (operation) (Dimensions) | 15g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Degree of protection (Dimensions) | IP00 |
| Accessibility (Ambient conditions) | Accessible |
| Mounting type (Ambient conditions) | PCB mounting |
| Vibration (operation) (Dimensions) | 2g (10-500 Hz/2.5 h/XYZ) |
| Weight per Piece (excluding packing) | 32.000 g |
| Housing material (Ambient conditions) | PA 6.6-FR 20% GF |
| Operating current (Protective circuit) | 5 mA AC ... 1 A AC |
| Operating voltage (Protective circuit) | 5 V AC ... 30 V AC |
| Maximum continuous voltage UC (General) | 760 V AC |
| Switching function (Protective circuit) | PDT contact |
| Degree of pollution (Ambient conditions) | 2 |
| Installation location (Ambient conditions) | Inside |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| IEC test classification (Ambient conditions) | I / II |
| Max. backup fuse with branch wiring (General) | 250 A (gG) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % |
| Nominal discharge current In(8/20) µs (General) | 20 kA |
| Maximum discharge current Imax(8/20) µs (General) | 40 kA |
| Standards/regulations (Indicator/remote signaling) | IEC 61643-11 2011 |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Permissible humidity (storage/transport) (Dimensions) | 5 % ... 95 % |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Distance between live and grounded parts (Ambient conditions) | 16 mm |
| Maximum discharge current Imax(8/20) µs (Shield-Earth) (General) | 12.5 kA |
Product Description
Single-channel socket element for VAL-MS series surge protection devices type I and type II, for isolated and grounded voltage systems up to 1500 V DC and 690 V AC, for compact installation on printed
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
Single-channel base element for surge protective devices VAL-MS series type I and type II, for isolated and grounded voltage systems up to 1500 V DC and 690 V AC, for space-saving PCB installation, with integrated remote indication contact
