VAL-MS 385/80/1+1

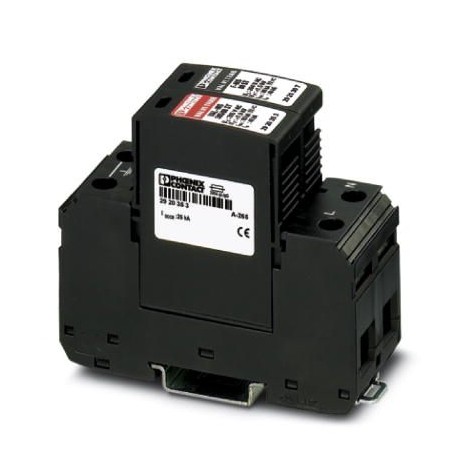

VAL-MS 385/80/1+1 2921297 PHOENIX CONTACT Type 2 surge arrester for 3-wire power supply systems (L1, N, PE),..
$0.00USD
4813 in stock
Key Specifications
:EN 61643-11 2012
Type:DIN rail module, two-section, divisible
Color:jet black RAL 9005
Depth:77.5 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EN 61643-11 2012 | |
| Type | DIN rail module, two-section, divisible |
| Color | jet black RAL 9005 |
| Depth | 77.5 mm |
| Width | 35.6 mm |
| Height | 90 mm |
| EN type | T2 |
| Altitude | ≤ 2000 m (amsl (above mean sea level)) |
| ETIM 2.0 | EC000941 |
| ETIM 3.0 | EC000941 |
| ETIM 4.0 | EC000941 |
| ETIM 5.0 | EC000941 |
| SPD Type | 4CA |
| UNSPSC 11 | 39121610 |
| SPD design | Combination type |
| eCl@ss 4.0 | 27140201 |
| eCl@ss 4.1 | 27130801 |
| eCl@ss 5.0 | 27130801 |
| eCl@ss 5.1 | 27130801 |
| eCl@ss 6.0 | 27130805 |
| eCl@ss 7.0 | 27130805 |
| eCl@ss 8.0 | 27130806 |
| eCl@ss 9.0 | 27130806 |
| UNSPSC 13.2 | 39121620 |
| UNSPSC 6.01 | 30212010 |
| Nom. voltage | 240 V AC |
| Screw thread | M5 |
| UNSPSC 12.01 | 39121610 |
| Mounting type | DIN rail: 35 mm |
| UNSPSC 7.0901 | 39121610 |
| Number of ports | One |
| Horizontal pitch | 2 Div. |
| Housing material | PA 6.6 |
| Stripping length | 16 mm |
| Connection method | Screw connection |
| Nominal frequency | 50/60 Hz |
| Shock (operation) | 30g (half sinus / 11 ms / 3x ±X, ±Y, ±Z) |
| Tightening torque | 4.5 Nm |
| Mode of protection | L-N |
| Nominal voltage UN | 240 V AC (TN-S) |
| Degree of pollution | 2 |
| Degree of protection | IP20 (only when all terminal points are used) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Residual current IPE | ≤ 5 µA |
| Rated load current IL | 80 A |
| Response time tA(L-N) | ≤ 25 ns |
| Vibration (operation) | 7.5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| IEC power supply system | TT |
| IEC test classification | II |
| TOV behavior at UT(L-N) | 480 V AC (5 s / withstand mode) |
| Standards/specifications | IEC 61643-11 2011 |
| TOV behavior at UT(N-PE) | 1200 V AC (200 ms / withstand mode) |
| Power distribution system | 1 |
| Residual voltage Ures(L-N) | ≤ 2 kV (at In) |
| Conductor cross section AWG | 15 ... 2 |
| Residual voltage Ures(L-PE) | ≤ 2 kV (at In) |
| Residual voltage Ures(N-PE) | ≤ 0.6 kV (at In) |
| Standby power consumption PC | ≤ 231 mVA |
| Conductor cross section solid | 1.5 mm² ... 35 mm² |
| Surge protection fault message | optical |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Conductor cross section flexible | 1.5 mm² ... 25 mm² |
| Permissible humidity (operation) | 5 % ... 95 % |
| Voltage protection level Up(L-N) | ≤ 2 kV |
| Nominal discharge current In(L-G) | 20 kA |
| Nominal discharge current In(L-N) | 20 kA |
| Nominal discharge current In(N-G) | 20 kA |
| Voltage protection level Up(L-PE) | ≤ 2 kV |
| Voltage protection level Up(N-PE) | ≤ 1.7 kV |
| Short-circuit current rating ISCCR | 25 kA |
| Max. backup fuse with branch wiring | 250 A (gG) |
| Maximum continuous voltage UC(N-PE) | 264 V AC |
| Measured limiting voltage MLV (L-G) | 3730 V |
| Measured limiting voltage MLV (L-N) | 2710 V |
| Measured limiting voltage MLV (N-G) | 2590 V |
| Flammability rating according to UL 94 | V-0 |
| Nominal discharge current In(8/20) µs | 40 kA |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Maximum discharge current Imax(8/20) µs | 80 kA |
| Follow current interrupt rating Ifi(N-PE) | 100 A (264 V AC) |
| Total discharge current ITotal(8/20) µs | 80 kA |
| Max. backup fuse with V-type through wiring | 80 A (gG - 16 mm²) |
| Total discharge current ITotal(10/350) µs | 5 kA |
| Maximum continuous operating voltage UC(L-N) | 385 V AC |
| Maximum continuous operating voltage MCOV (L-G) | 385 V AC |
| Maximum continuous operating voltage MCOV (L-N) | 385 V AC |
| Maximum continuous operating voltage MCOV (N-G) | 264 V AC |
| Impulse discharge current (10/350) µs (L-PE), charge | 1.25 As |
| Impulse discharge current (10/350) µs (N-PE), charge | 5 As |
| Impulse discharge current (10/350) µs (L-N), charge | 1.25 As |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs (N-PE) | ≤ 1.7 kV |
| Impulse discharge current (10/350) µs (L-N), specific energy | 1.56 kJ/Ω |
| Impulse discharge current (10/350) µs (N-PE), specific energy | 25 kJ/Ω |
| Impulse discharge current (10/350) µs (L-PE), specific energy | 1.56 kJ/Ω |
| Impulse discharge current (10/350) µs (L-PE), peak current value Iimp | 2.5 kA |
| Impulse discharge current (10/350) µs (N-PE), peak current value Iimp | 10 kA |
| Impulse discharge current (10/350) µs (L-N), peak current value Iimp | 2.5 kA |
