VAL-MS 320 RW ST

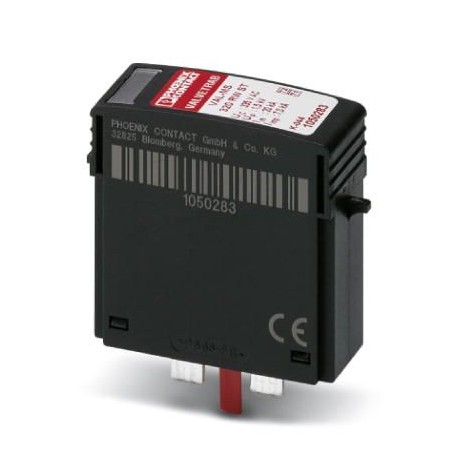

VAL-MS 320 RW ST 1050283 PHOENIX CONTACT Type 2 surge protection plug
$0.00USD
3135 in stock
Key Specifications
GTIN:4055626666112
Note:Made to Order (non-returnable)
Orderkey:1050283
(General):440 V AC (120 min / safe failure mode)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626666112 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1050283 |
| (General) | 440 V AC (120 min / safe failure mode) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| (Connection data) | EN 61643-11 2012 |
| Custom tariff number | 85363090 |
| (Ambient conditions) | L-PEN |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Minimum order quantity | 10 pc |
| Type (Ambient conditions) | DIN rail module, two-section, divisible |
| Color (Ambient conditions) | jet black RAL 9005 |
| Response time tA (General) | ≤ 25 ns |
| Depth (Key Commercial Data) | 55.3 mm |
| Width (Key Commercial Data) | 17.5 mm |
| EN type (Ambient conditions) | T2 |
| Height (Key Commercial Data) | 52.4 mm |
| Nominal voltage UN (General) | 240/415 V AC (TN) |
| TOV behavior at UT (General) | 415 V AC (5 s / withstand mode) |
| Nominal frequency fN (General) | 50 Hz (60 Hz) |
| Residual current IPE (General) | ≤ 0.45 mA |
| Shock (operation) (Dimensions) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Residual voltage Ures (General) | ≤ 1.5 kV (at In) |
| Degree of protection (Dimensions) | IP20 |
| Mounting type (Ambient conditions) | on base element |
| Vibration (operation) (Dimensions) | 5g (10 ... 500 Hz / 2.5 h / X, Y, Z) |
| Weight per Piece (excluding packing) | 63.200 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Voltage protection level Up (General) | ≤ 1.5 kV |
| Connection method (Protective circuit) | pluggable |
| Horizontal pitch (Key Commercial Data) | 1 Div. |
| Standby power consumption PC (General) | ≤ 150 mVA |
| Maximum continuous voltage UC (General) | 335 V AC |
| Mode of protection (Ambient conditions) | L-N |
| Standards/regulations (Connection data) | IEC 61643-11 2011 |
| Degree of pollution (Ambient conditions) | 2 |
| Number of positions (Ambient conditions) | 1 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| IEC test classification (Ambient conditions) | II |
| Short-circuit current rating ISCCR (General) | 25 kA |
| Max. backup fuse with branch wiring (General) | 125 A (gG) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % |
| Nominal discharge current In(8/20) µs (General) | 20 kA |
| Maximum discharge current Imax(8/20) µs (General) | 40 kA |
| Surge protection fault message (Ambient conditions) | optical |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
| Impulse discharge current (10/350) µs, charge (General) | 3.5 As |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Impulse discharge current (10/350) µs, peak value limp (General) | 7 kA |
| Impulse discharge current (10/350) µs, specific energy (General) | 12.25 kJ/Ω |
Product Description
Plug-in type 2 surge protection with high-power varistor for VAL-MS base element, with thermal control, optical fault indication. Version: 320 V AC with increased lightning current shunt capability.
