UGXH12BP

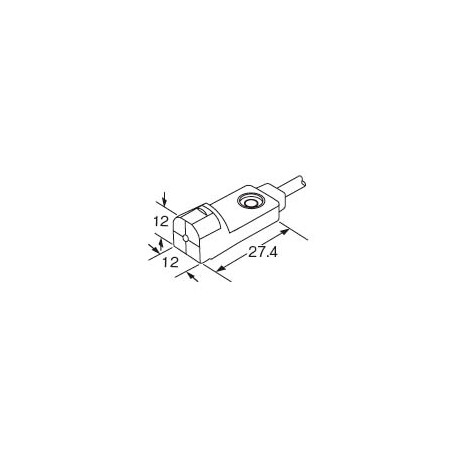

UGXH12BP GX-H12B-P PANASONIC inductive proximity sensor, rectangular shape, 4,0mm, NC, PNP, cable 1m
$0.00USD
3206 in stock
Key Specifications
Item:Specifications
Cable:0.15 mm23-core oil, heat and cold resistant cabtyre cable, 1 m3.281 ftlong
Output:PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less(between output and +V)- Residual voltage: 2 V or less (at 100 mA source current)
Details:PNP output
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | 0.15 mm23-core oil, heat and cold resistant cabtyre cable, 1 m3.281 ftlong |
| Output | PNP open-collector transistor- Maximum source current: 100 mA- Applied voltage: 30 V DC or less(between output and +V)- Residual voltage: 2 V or less (at 100 mA source current) |
| Details | PNP output |
| Product | Rectangular-shaped Inductive Proximity Sensor |
| Material | Enclosure: PBTIndicator part: Polyester |
| Hysteresis | 20 % or less of operation distance(with standard sensing object) |
| Net weight | 20 g approx. |
| Protection | IP68 (IEC), IP68g (JEM)(Note) Panasonic Electric Works SUNX's IP68 test method1. Immerse at 0 m below 0 ℃+32 ℉water surface and leave for 30 min. Then, immerse at 0 m below +70 ℃+158 ℉water surface and leave for 30 min.2. Regard the heat shock test in 1 as one cycle and perform 20 cycles.3. Leave in water at a depth of 1 m3.281 ftin water for 500 hours.4. After tests 1 to 3, insulation resistance, voltage withstandability, current consumption, and sensing ranges must meet the standard values.(Note) If using the sensor in an environment where cutting oil droplets splatter, the sensor may be deteriorated due to added substances in the oil. |
| Part Number | GX-H12B-P |
| Product name | Rectangular-shaped Inductive Proximity Sensor GX-F/H |
| Repeatability | Along sensing axis, perpendicular to sensing axis: 0.04 mm0.002 inor less |
| Product Number | GX-H12B-P |
| Supply voltage | 12 to 24 V DC +10/-15 % Ripple P-P 10 % or less |
| Cable extension | Extension up to total 100 m328.084 ftis possible with 0.3 mm2, or more, cable. |
| Ambient humidity | 45 to 85 % RH, Storage: 35 to 95 % RH |
| Shock resistance | 10,000 m/s2acceleration (1,000 G approx.) in X, Y and Z directions three times each |
| Ambient temperature | -25 to +70 ℃-13 to +158 ℉, Storage: - 40 to +85 ℃- 40 to +185 ※ |
| Current consumption | 15 mA or less |
| Operation indicator | Orange LED(lights up when the output is ON) |
| Stable sensing range | 0 to 3.3 mm0 to 0.130 in(Note) The stable sensing range stands for the sensing range for which the sensor can stably detect the standard sensing object even if there is an ambient temperature drift and/or supply voltage fluctuation. |
| Vibration resistance | 10 to 500 Hz frequency, 3 mm0.118 indouble amplitude (Max. 20 G) in X, Y and Z directions for two hours each |
| Insulation resistance | 50 MΩ , or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Max. operation distance | 4.0 mm0.158 inplus or minus 8 %(Note) The maximum operation distance stands for the maximum distance for which the sensor can detect the standard sensing object. |
| Max. response frequency | 500 Hz |
| Output:Output operation | Normally closed |
| Standard sensing object | Iron sheet 20 × 20 × t 1 mm0.787 × 0.787 × t 0.039 in |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Output:Utilization category | DC-12 or DC-13 |
| Applicable regulations and certifications | CE Marking (EMC Directive, RoHS Directive), UKCA Marking (EMC Regulations, RoHS Regulations) |
| Sensing range variation:Voltage characteristics | Within plus or minus 2 % for +10/-15 % fluctuation of the supply voltage |
| Sensing range variation:Temperature characteristics | Over ambient temperature range -25 to +70 ℃ -13 to +158degrees Fahrenheit: Within plus or minus 8 % of sensing range at +23 ℃ +73 ℉ |
