UDPS401
UDPS401 DPS-401 PANASONIC Ampl. seperated pressure sensor, vacuum, compound
$0.00USD
4856 in stock
Key Specifications
Item:Specifications
Remark:・Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20℃+68℉.・The cable for controller connection is not supplied as an accessory. Make sure to use the quick-connection cables (optional) given below.Main cable (4-core) : CN-74-C1 (cable length : 1m3.281 ft), CN-74-C2 (cable length : 2 m6.562 ft), CN-74-C5 (cable length : 5 m16.404 ft)Sub cable (2-core) : CN-72-C1 (cable length : 1m3.281 ft), CN-72-C2 (cable length : 2 m6.562 ft), CN-72-C5 (cable length : 5 m16.404 ft)・The values specified above are applied only to the controller.
Weight:Net weight : 20 g approx.
Details:Controller
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Remark | ・Where measurement conditions have not been specified precisely, the conditions used were an ambient temperature of +20℃+68℉.・The cable for controller connection is not supplied as an accessory. Make sure to use the quick-connection cables (optional) given below.Main cable (4-core) : CN-74-C1 (cable length : 1m3.281 ft), CN-74-C2 (cable length : 2 m6.562 ft), CN-74-C5 (cable length : 5 m16.404 ft)Sub cable (2-core) : CN-72-C1 (cable length : 1m3.281 ft), CN-72-C2 (cable length : 2 m6.562 ft), CN-72-C5 (cable length : 5 m16.404 ft)・The values specified above are applied only to the controller. |
| Weight | Net weight : 20 g approx. |
| Details | Controller |
| Product | Head-separated Dual Display Digital Pressure Sensor [For Gas] |
| Material | Enclosure : Heat-resistant ABS, Protective cover : Polycarbonate, Jog switch : ABS, MODE key : Acrylic |
| Part Number | DPS-401 |
| Product name | Head-separated Dual Display Digital Pressure Sensor [For Gas] DPS-400 / DPH-100 |
| Product Number | DPS-401 |
| Supply voltage | 12 to 24 V DC ±10 % Ripple P-P 10 % or less |
| Ambient humidity | 35 to 85 % RH, Storage : 35 to 85 % RH |
| Power consumption | Normal operation : 650 mW or less (Current consumption 25 mA or less at 24 V supply voltage)ECO mode : 500 mW or less (Current consumption 20 mA or less at 24 V supply voltage)(Note): Excluding current consumption of the applicable pressure sensor head. |
| Sensor head input | Input voltage range : 1 to 5 V DC (over rated pressure range) |
| Comparative output | NPN open-collector transistor・Maximum sink current : 50 mA (Note 1)・Applied voltage : 30 V DC or less (between comparative output and 0 V)・Residual voltage : 1.5 V or less (Note 2) [at 50 mA (Note 1) sink current](Note 1): 25 mA max. if 5 or more controllers are connected together.(Note 2): In case of using the quick-connection cable (cable length : 5 m16.404 ft)(optional) |
| Ambient temperature | -10 to +50℃+14 to +122℉(cascading 8 to 16 controllers : -10 to +45℃+14 to +133℉)(No dew condensation or icing allowed), Storage : -20 to +70℃-4 to +158℉ |
| Rated pressure range | Compound pressure : -100.0 to +100.0kPaVacuum pressure : 0 to -101kPa |

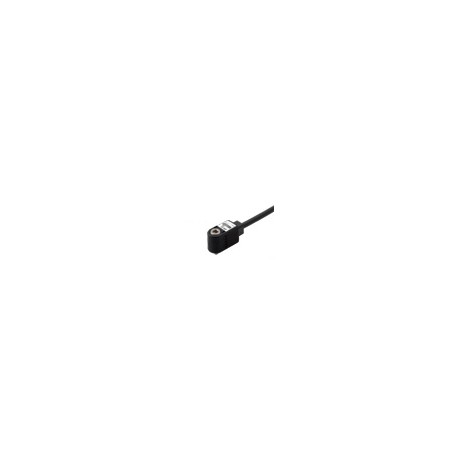

| Applicable sensor head | Compound pressure : DPH-101□Vacuum pressure : DPH-103□ |
| Sensor head supply voltage | Same as supply voltage |
| Temperature characteristics | Over ambient temperature range -10 to +50℃+14 to +122℉: within ±0.5 % F.S. of pressure at +25℃+77℉ |
| Display / set pressure range | Compound pressure : -199.9 to +199.9 kPaVacuum pressure : +101.3 to -101.3 kPa |
| Comparative output:Hysteresis | Minimum 0 digit, variable by hysteresis setting |
| CE marking directive compliance | EMC Directive, RoHS Directive |
| Comparative output:Repeatability | With compound pressure type connected : within ±0.2 % F.S. (±4 digits), With vacuum / positive pressure type connected : within ±0.2 % F.S. (±2 digits) |
| Comparative output:Response time | 150 μs, 500 μs, 1 ms, 5 ms, 10 ms, 50 ms, 100 ms, 500 ms, selectable by jog switch |
| Comparative output：Output operation | NO / NC, selectable by jog switch |
Product Description
Pressure sensor, amplifier, vacuum
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
