DPH-101-M3

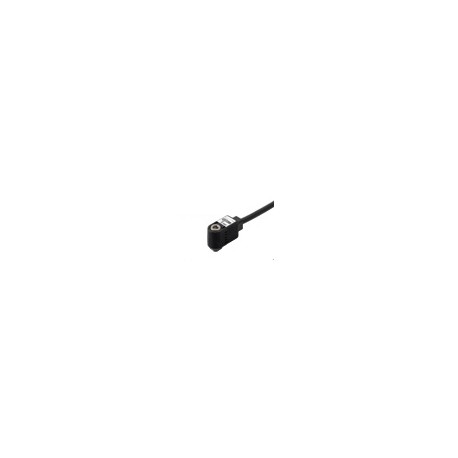

DPH-101-M3 PANASONIC Pressure sensor head DPH-100, -1 to +1bar, 1 to 5V, M3 male thread 2m cable
$0.00USD
3035 in stock
Key Specifications
Item:Specifications
Cable:0.2 mm24-core oil resistant cabtyre cable (Models with "-R" affixed to the Model No. have bending-resistant, oil-resistant cabtyre cable)
Remark:Where measurement conditions have not been specifi ed precisely, the conditions used were an ambient temperature of +25 ℃+77 ℉.The sensor head can be used independently.
Details:Sensor head
Supplier Information
PANASONIC
Products: 4316
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Item | Specifications |
| Cable | 0.2 mm24-core oil resistant cabtyre cable (Models with "-R" affixed to the Model No. have bending-resistant, oil-resistant cabtyre cable) |
| Remark | Where measurement conditions have not been specifi ed precisely, the conditions used were an ambient temperature of +25 ℃+77 ℉.The sensor head can be used independently. |
| Details | Sensor head |
| Product | Head-separated Dual Display Digital Pressure Sensor [For gas] |
| Material | Front case : PBT, Rear case : PBT (glass fiber reinforced), Pressure port : Stainless steel (SUS303), O-ring : NBRPressure element : Silicon diaphragm, PPS |
| Protection | IP40 (IEC) |
| Accessories | Connector (e-CON) : 1 pc. |
| Part Number | DPH-101-M3 |
| Product name | Head-separated Dual Display Digital Pressure Sensor [For Gas] DPS-400 / DPH-100 |
| Pressure port | M3 male thread (for installing gasket) |
| Product Number | DPH-101-M3 |
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Cable extension | Extension up to total 10 m32.808 ftis possible with 0.2 mm2, or more, cable. |
| Ambient humidity | 35 to 85 % RH, Storage : 35 to 85 % RH |
| Applicable fluid | Air, non-corrosive gas |
| Shock resistance | 1,000 m/s2acceleration (100 G approx.) in X, Y and Z directions for three times each |
| Type of pressure | Gauge pressure |
| Connecting method | Connector |
| Ambient temperature | 0 to +50 ℃+32 to +122 ℉(No dew condensation allowed), Storage : -10 to +60 ℃+14 to +140 ℉ |
| Current consumption | 15 mA or less |
| Weight : Net weight | Head 6 g approx. / Cable 40 g approx. |
| Rated pressure range | -100.0 to +100.0 kPa |
| Vibration resistance | 10 to 500 Hz frequency, amplitude 3 mm0.118 inor maximum acceleration 196 m/s2, in X, Y and Z directions for two hours each |
| Analog voltage output | Output voltage : 1 to 5 V (over rated pressure range)Zero point : within 1 V ± 2.5 % F.S. (vacuum / positive pressure type)within 3 V ± 3 % F.S. (compound pressure type)Span : within 4 V ± 3.5 % F.S.Linearity : within ±0.5 % F.S.Output impedance : 1 kΩ approx. |
| Insulation resistance | 50 MΩ, or more, with 500 V DC megger between all supply terminals connected together and enclosure |
| Weight : Gross weight | 70 g approx. |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Pressure withstandability | 500 kPa |
| Temperature characteristics | Over ambient temperature range 0 to +50 ℃+32 to +122 ℉: within ±2 % F.S. of detected pressure at +25 ℃+77 ℉ |
| CE marking directive compliance | EMC Directive, RoHS Directive |
Product Description
DPH100 sensor head, compound pressure ± 100 kPa, M3 male thread, analog output 1-5 VDC, cable 2 m.
