UBK 2-500

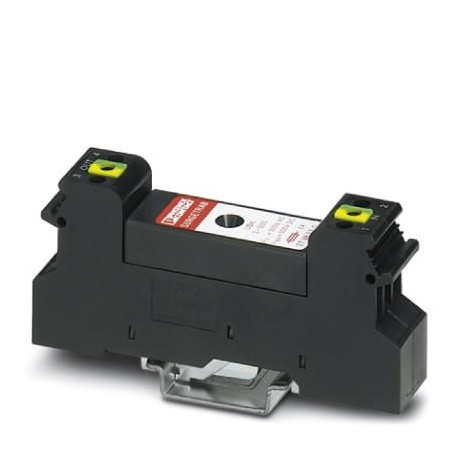

UBK 2-500 2798530 PHOENIX CONTACT Surge protection device
$0.00USD
4344 in stock
Key Specifications
GTIN:4017918073800
Orderkey:2798530
(General):D1 - 2.5 kA
Catalog page:Page 54 (TT-2002)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918073800 |
| Orderkey | 2798530 |
| (General) | D1 - 2.5 kA |
| Catalog page | Page 54 (TT-2002) |
| Packing unit | 10 pc |
| Country of origin | GR (Greece) |
| (Connection data) | EN 61643-21 2001 + A1:2009 |
| Custom tariff number | 85363010 |
| Altitude (Dimensions) | ≤ 2000 mm (amsl (above mean sea level)) |
| Rated current (General) | 2 A |
| Type (Ambient conditions) | DIN rail module, one-piece |
| Color (Ambient conditions) | jet black RAL 9005 |
| Depth (Key Commercial Data) | 46 mm (incl. DIN rail 7.5 mm) |
| Width (Key Commercial Data) | 17.5 mm |
| Height (Key Commercial Data) | 90 mm |
| Nominal voltage UN (General) | 500 V AC |
| Capacity (line-line) (General) | typ. 7 pF |
| Residual current IPE (General) | ≤ 1 µA |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | C2 |
| Screw thread (Protective circuit) | M3 |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Input attenuation aE, sym. (General) | typ. 0 dB (≤ 30 MHz / 50 Ω) |
| Max. required back-up fuse (General) | 2 A (gL) |
| Weight per Piece (excluding packing) | 60.010 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Response time tA(line-line) (General) | ≤ 100 ns |
| Stripping length (Protective circuit) | 8 mm |
| Connection method (Protective circuit) | Screw connection |
| Horizontal pitch (Key Commercial Data) | 1 Div. |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Tightening torque (Protective circuit) | 0.5 Nm ... 0.6 Nm |
| Maximum continuous voltage UC (General) | 500 V AC |
| Direction of action (Ambient conditions) | Line-Earth Ground |
| Impulse durability (line-line) (General) | C2 - 10 kV/5 kA |
| Surge protection fault message (General) | none |
| Impulse durability (line-earth) (General) | C2 - 10 kV/5 kA |
| Standards/specifications (Connection data) | IEC 61643-21 2000 + A1:2008 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Operating effective current ICat UC (General) | ≤ 1 µA |
| Conductor cross section AWG (Protective circuit) | 24 ... 12 |
| Voltage protection level Up(line-line) (General) | 3.5 kV (C2 - 10 kV / 5 kA) |
| Voltage protection level Up(line-earth) (General) | 2.2 kV (C2 - 10 kV / 5 kA) |
| Conductor cross section solid (Protective circuit) | 0.2 mm² ... 4 mm² |
| Pulse discharge current Iimp(10/350) µs (General) | 2.5 kA |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
| Conductor cross section flexible (Protective circuit) | 0.2 mm² ... 2.5 mm² |
| Alternating current carrying capacity (line-line) (General) | 10 A - 1 s |
| Flammability rating according to UL 94 (Ambient conditions) | V-2 |
| Alternating current carrying capacity (line-earth) (General) | 10 A - 1 s |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system (General) | typ. 60 MHz |
| Nominal discharge current In(8/20) µs (line-line) (General) | 10 kA |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 10 kA |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 2.5 kV |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 1.5 kV |
| Standards for cearances and creepage distances (Ambient conditions) | IEC 60664-1 |
Product Description
Rail mounting module with sufficient surge protection for two signal conductors. Self-contact ground foot for mounting on NS 32 or NS 35/7.5, housing width: 17.5 mm. Execution: 500 V AC
