TT-2-PE-M-24DC

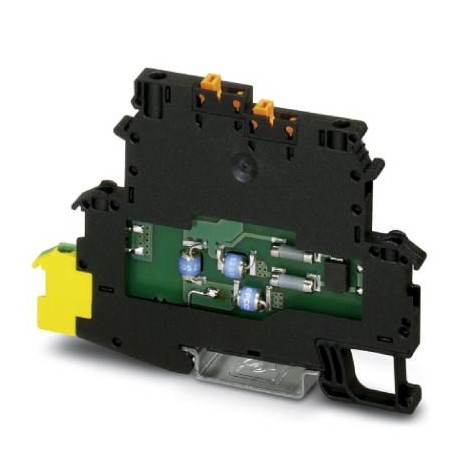

TT-2-PE-M-24DC 2920641 PHOENIX CONTACT Surge protection device
$0.00USD
4672 in stock
Key Specifications
GTIN:4046356160193
Note:Made to Order (non-returnable)
Orderkey:2920641
(General):D1 - 500 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356160193 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2920641 |
| (General) | D1 - 500 A |
| Catalog page | Page 94 (C-6-2015) |
| Packing unit | 14 pc |
| Country of origin | DE (Germany) |
| (Connection data) | IEC 61643-21 2000 |
| Custom tariff number | 85363010 |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Rated current (General) | 300 mA (40 °C) |
| Type (Ambient conditions) | Double-level terminal block with PE foot – separate PE connection |
| Color (Ambient conditions) | jet black RAL 9005 |
| Depth (Key Commercial Data) | 69.1 mm |
| Width (Key Commercial Data) | 6.2 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 94.8 mm |
| Nominal voltage UN (General) | 24 V DC |
| Capacity (line-line) (General) | < 2.5 nF |
| Residual current IPE (General) | ≤ 2 µA |
| Resistance in series (General) | 3.3 Ω ±20 % |
| Degree of protection (Dimensions) | IP20 (with end cover) |
| IEC test classification (General) | C1 |
| Screw thread (Protective circuit) | M3 |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Input attenuation aE, sym. (General) | typ. 0.6 dB (≤ 500 kHz / 50 Ω) |
| Max. required back-up fuse (General) | 315 mA (T) |
| Weight per Piece (excluding packing) | 32.960 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Response time tA(line-line) (General) | ≤ 1 ns |
| Stripping length (Protective circuit) | 8 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Protective circuit) | Screw connection |
| Horizontal pitch (Key Commercial Data) | 1 Div. |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Tightening torque (Protective circuit) | 0.6 Nm |
| Maximum continuous voltage UC (General) | 30 V DC |
| Direction of action (Ambient conditions) | Line-Line & Line-Earth Ground |
| Impulse durability (line-line) (General) | C2 - 10 kV/5 kA |
| Number of positions (Ambient conditions) | 2 |
| Surge protection fault message (General) | none |
| Connection method IN (Protective circuit) | Screw terminal blocks |
| Impulse durability (line-earth) (General) | C2 - 10 kV/5 kA |
| Connection method OUT (Protective circuit) | Screw terminal blocks |
| Standards/specifications (Connection data) | EN 61643-21 2001 |
| Residual voltage at In(line-line) (General) | ≤ 45 V |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Operating effective current ICat UC (General) | ≤ 5 µA |
| Conductor cross section AWG (Protective circuit) | 24 ... 14 |
| Voltage protection level Up(line-line) (General) | ≤ 45 V (C1 - 500 V / 250 A) |
| Conductor cross section solid (Protective circuit) | 0.2 mm² ... 4 mm² |
| Total discharge current Itotal(8/20) µs (General) | 10 kA |
| Conductor cross section flexible (Protective circuit) | 0.2 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system (General) | typ. 6 MHz |
| Nominal discharge current In(8/20) µs (line-line) (General) | 5 kA |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system (General) | typ. 2 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) (General) | 30 A |
| Residual voltage with Ian (10/1000) µs (line-line) (General) | ≤ 50 V |
| Nominal pulse current Ian (10/1000) µs (line-earth) (General) | 100 A |
| Pulse discharge current Iimp(10/350) µs (line-earth) (General) | 500 A |
| Output voltage limitation at 1 kV/µs (line-line) spike (General) | ≤ 45 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 650 V |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 45 V |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 650 V |
