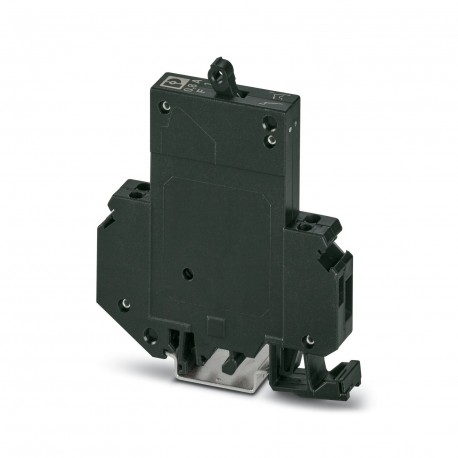

TMC 1 F1 2000,8A
TMC 1 F1 200 0,8A 0914248 PHOENIX CONTACT Protection breaker thermal magnetic, 1 pole, fast, 1 contact close..
$0.00USD
3863 in stock
Key Specifications
EAN:Four trillion seventeen billion nine hundred eighteen million eight thousand nine hundred twenty five
Key order:0914248
(Measures):IP20 (connection Area)
(Overview):3000 V AC (main Circuit to auxiliary)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| EAN | Four trillion seventeen billion nine hundred eighteen million eight thousand nine hundred twenty five |
| Key order | 0914248 |
| (Measures) | IP20 (connection Area) |
| (Overview) | 3000 V AC (main Circuit to auxiliary) |
| Key selling | CLA121 - |
| Catalog page | Page 282 (CL_2002) |
| Packing unit | 6 pcs |
| Country of origin | (Germany) |
| (Data connection) | UL 1077 |
| Tariff number tariff | Eighty five million three hundred sixty two thousand ten |
| Color (Data commercial) | black |
| Depth (Electrical data) | 96 mm |
| Type of fuse (Overview) | Automatic fuse |
| Width (Electrical data) | 12.5 mm |
| Height (Electrical data) | 82,5 mm |
| Tension sizing (Overview) | 65 V DC |
| Isolation (Data commercial) | PA66 |
| Pollution degree (Overview) | Two |
| Rated current IN (Overview) | 0.8 To |
| Dielectric strength (Overview) | 3000 V AC (Range drive) |
| Index of protection (Measures) | IP30 (Range drive) |
| Mounting type (Data commercial) | Rail symmetrical 35 mm |
| Number of poles (Data commercial) | One |
| Unit weight (excluding packaging) | 63,360 g |
| Number of floors (Data commercial) | Two |
| Transient voltage design (Overview) | 2.5 kV |
| Group insulating material (Overview) | II |
| Gauge male (Environmental conditions) | A3 |
| Insulation resistance Riso (Overview) | > 100 MΩ (500 VDC) |
| Room temperature (service) (Measures) | -30 °C ... 60 °C |
| Category sobretensiones_GRP (Overview) | II |
| Standards/provisions (Data connection) | IN 60934 |
| Number of connections (Data commercial) | Four |
| Screw thread (Environmental conditions) | M3 |
| REACh SVHC (Standards and specifications) | Lead 7439-92-1 |
| Length desaislar (Environmental conditions) | 12 mm |
| Category sobretensiones_GRP (Data commercial) | II |
| Type of connection (Environmental conditions) | Connection by screw |
| Breaking capacity in short circuit (Ik (Overview) | 2000 A (UL 1077: 65 V DC) |
| Tightening torque max. (Environmental conditions) | 0.8 Nm |
| Tightening torque min. (Environmental conditions) | 0.6 Nm |
| Periodicities of change of state maximum (Overview) | 10000 (At 1 x In, inductive) |
| Ability to rupture mapped in the short Icn (Overview) | 2500 A (32 V DC) |
| Core cross-section rigid min. (Environmental conditions) | 0,2 mm2 |
| Section of conductor AWG max. (Environmental conditions) | Ten |
| Section of conductor AWG min. (Environmental conditions) | Twenty four |
| Class of flammability according to UL 94 (Data commercial) | V-2 |
| Section of conductor rigid max. (Environmental conditions) | 6 mm2 |
| Section of flexible conductor max. (Environmental conditions) | 4 mm2 |
| Section of flexible conductor, min. (Environmental conditions) | 0,2 mm2 |
| 2 conductors with same cross section, rigid max. (Environmental conditions) | 0.75 mm2 |
| 2 conductors with same cross section, rigid min. (Environmental conditions) | 0,2 mm2 |
| 2 conductors with same cross section, flexible max. (Environmental conditions) | 0.75 mm2 |
| 2 conductors with same cross section, flexible, min. (Environmental conditions) | 0,2 mm2 |
| Section of flexible conductor with toe, with plastic sleeve max. (Environmental conditions) | 2.5 mm2 |
| Section of flexible conductor with toe, with plastic sleeve min. (Environmental conditions) | 0.25 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve max. (Environmental conditions) | 4 mm2 |
| Section of flexible conductor with toe cap, without plastic sleeve min. (Environmental conditions) | 0.25 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve max. (Environmental conditions) | 1 mm2 |
| 2 conductors with same cross section, flexible with AEH without plastic sleeve min. (Environmental conditions) | 0.25 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve max. (Environmental conditions) | 2.5 mm2 |
| 2 conductors with same cross section, flexible with TWIN-AEH with plastic sleeve min. (Environmental conditions) | 0.5 mm2 |
Product Description
Thermomagnetic protection switch, 1 pole, fast, 1 closed contact, with universal foot for mounting on NS 32 or NS 35
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
