PT 2X1-12DC-ST

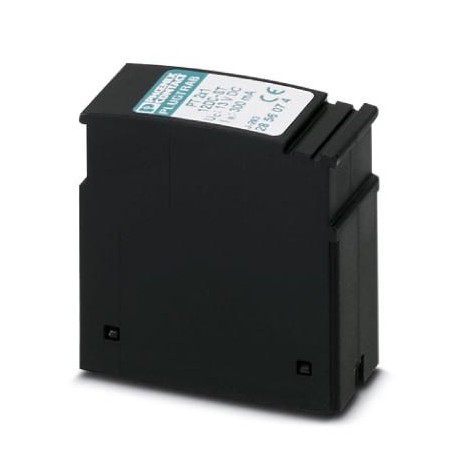

PT 2X1-12DC-ST 2856074 PHOENIX CONTACT Surge protection plug
$0.00USD
3878 in stock
Key Specifications
GTIN:4017918599171
Note:Made to Order (non-returnable)
Orderkey:2856074
(General):D1 - 2.5 kA
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918599171 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2856074 |
| (General) | D1 - 2.5 kA |
| Catalog page | Page 112 (C-4-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| (Connection data) | UL 497B |
| Custom tariff number | 85363010 |
| (Ambient conditions) | IEC 60664-1 |
| Rated current (General) | 300 mA (45°C) |
| Type (Ambient conditions) | Male |
| Color (Ambient conditions) | black |
| Depth (Key Commercial Data) | 51.7 mm |
| Width (Key Commercial Data) | 17.5 mm |
| Height (Key Commercial Data) | 44.8 mm |
| Nominal voltage UN (General) | 12 V DC |
| Residual current IPE (General) | ≤ 1 µA (with PT 2X1+F-BE) |
| Resistance in series (General) | 4.7 Ω (1-2/5-6/7-8/11-12) |
| Capacity (line-earth) (General) | 1.5 nF |
| VDE requirement class (General) | C1 |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | C1 |
| Screw thread (Protective circuit) | M3 |
| Mounting type (Ambient conditions) | on base element |
| Max. required back-up fuse (General) | 315 mA (T) |
| Weight per Piece (excluding packing) | 16.270 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Input attenuation aE, asym. (General) | 0.5 dB (≤ 600 kHz) |
| Stripping length (Protective circuit) | 8 mm |
| Horizontal pitch (Key Commercial Data) | 1 Div. |
| Response time tA(line-earth) (General) | ≤ 1 ns |
| Tightening torque (Protective circuit) | 0.8 Nm |
| Maximum continuous voltage UC (General) | 13 V DC |
| Standards/regulations (Connection data) | IEC 61643-21 |
| Direction of action (Ambient conditions) | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Surge protection fault message (General) | none |
| Impulse durability (line-earth) (General) | C2 - 10 kV/5 kA |
| Standards/specifications (Connection data) | IEC 61643-21 2000 |
| Complete module depth (Key Commercial Data) | 65.5 mm |
| Complete module width (Key Commercial Data) | 17.7 mm |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Complete module height (Key Commercial Data) | 90 mm |
| Residual voltage at In(line-earth) (General) | ≤ 18 V |
| Operating effective current ICat UC (General) | ≤ 5 µA |
| Conductor cross section AWG (Protective circuit) | 24 ... 12 |
| Voltage protection level Up(line-earth) (General) | ≤ 65 V (C2 - 10 kV / 5 kA) |
| Conductor cross section solid (Protective circuit) | 0.2 mm² ... 4 mm² |
| Pulse discharge current Iimp(10/350) µs (General) | 2.5 kA (per path) |
| Total discharge current Itotal(8/20) µs (General) | 20 kA |
| Conductor cross section flexible (Protective circuit) | 0.2 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) (General) | 67 A |
| Residual voltage with Ian (10/1000) µs (line-earth) (General) | ≤ 23 V |
| Cut-off frequency fg (3 dB), asym. (PE) in 50 Ohm system (General) | typ. 3 MHz |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 23 V |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 18 V |
| Standards for cearances and creepage distances (Ambient conditions) | VDE 0110-1 |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) | 10 kA |
| Arrester can be tested with CHECKMASTER from software version: (Ambient conditions) | From SW rev. 1.00 |
Product Description
Plug-in surge protection for base element, coarse and fine protection for two signal conductors with common reference potential, coarse protection against longitudinal voltage to earth. Workmanship: 1
