PT 2-TELE-ST
PT 2-TELE-ST 2838733 PHOENIX CONTACT Surge protection plug
$0.00USD
3022 in stock
Key Specifications
GTIN:4046356044677
Orderkey:2838733
(General):D1 - 1 kA
Catalog page:Page 164 (C-4-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356044677 |
| Orderkey | 2838733 |
| (General) | D1 - 1 kA |
| Catalog page | Page 164 (C-4-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| (Connection data) | EN 61643-21 2002 |
| Custom tariff number | 85363010 |
| Rated current (General) | 450 mA AC (45°C) |
| Type (Ambient conditions) | Male |
| Color (Ambient conditions) | jet black RAL 9005 |
| Depth (Key Commercial Data) | 52 mm |
| Width (Key Commercial Data) | 17.7 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 45 mm |
| Nominal voltage UN (General) | 185 V DC |
| Capacity (line-line) (General) | typ. 30 pF (f=1 MHz / VR= 0 V) |
| Residual current IPE (General) | ≤ 10 µA |
| Capacity (line-earth) (General) | typ. 30 pF (f=1 MHz / VR= 0 V) |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | B2 |
| Mounting type (Ambient conditions) | on base element |
| Input attenuation aE, sym. (General) | typ. 0.4 dB (≤ 5 MHz / 100 Ω) |
| Weight per Piece (excluding packing) | 28.940 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Response time tA(line-line) (General) | ≤ 500 ns |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Protective circuit) | pluggable |
| Horizontal pitch (Key Commercial Data) | 1 Div. |
| Response time tA(line-earth) (General) | ≤ 500 ns |
| Maximum continuous voltage UC (General) | 185 V DC |
| Direction of action (Ambient conditions) | Line-Line & Line-Earth Ground |
| Impulse durability (line-line) (General) | B2 - 4 kV/100 A |
| Number of positions (Ambient conditions) | 2 |
| Surge protection fault message (General) | none |
| Impulse durability (line-earth) (General) | B2 - 4 kV/100 A |
| Standards/specifications (Connection data) | IEC 61643-21 2000 |
| Complete module depth (Key Commercial Data) | 65.5 mm |
| Complete module width (Key Commercial Data) | 17.7 mm |
| Residual voltage at In(line-line) (General) | ≤ 160 V (C2 - 10 kV / 5 kA) |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Complete module height (Key Commercial Data) | 90 mm |
| Residual voltage at In(line-earth) (General) | ≤ 200 V (C2 - 10 kV / 5 kA) |
| Operating effective current ICat UC (General) | ≤ 10 µA |
| Voltage protection level Up(line-line) (General) | ≤ 250 V (B2 - 1 kV / 25 A) |
| Voltage protection level Up(line-earth) (General) | ≤ 250 V (B2 - 1 kV / 25 A) |
| Total discharge current Itotal(8/20) µs (General) | 18 kA |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Nominal discharge current In(8/20) µs (line-line) (General) | 10 kA |
| Nominal pulse current Ian (10/700) µs (line-line) (General) | 100 A |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system (General) | typ. 20 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 10 kA |
| Nominal pulse current Ian (10/700) µs (line-earth) (General) | 100 A |
| Pulse discharge current Iimp(10/350) µs (line-line) (General) | 1 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) (General) | 1 kA |
| Output voltage limitation at 1 kV/µs (line-line) spike (General) | ≤ 300 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 300 V |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 300 V |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 300 V |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) | 18 kA |
Product Description

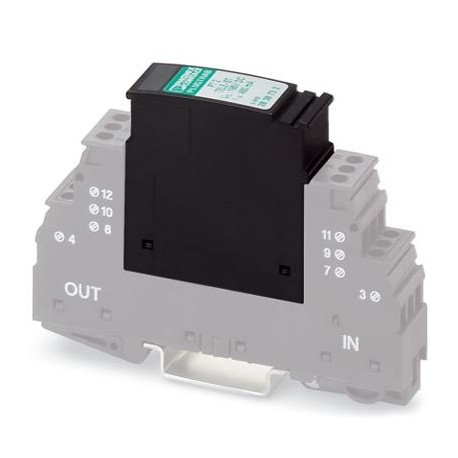

Plug-in surge protection for base element, for the protection of a 2-wire circuit of analogue telecommunication interfaces.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
