PT 2-F-ST

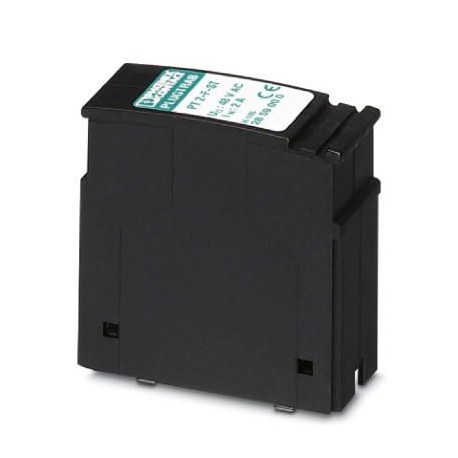

PT 2-F-ST 2859000 PHOENIX CONTACT Surge protection plug
$0.00USD
4738 in stock
Key Specifications
GTIN:4017918902452
Note:Made to Order (non-returnable)
Orderkey:2859000
(General):D1 - 2.5 kA
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918902452 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2859000 |
| (General) | D1 - 2.5 kA |
| Catalog page | Page 115 (C-4-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| (Connection data) | EN 61643-21 2001 + A1:2009 + A2:2013 |
| Custom tariff number | 85363010 |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Rated current (General) | 2 A AC (80 °C) |
| Type (Ambient conditions) | Male |
| Color (Ambient conditions) | jet black RAL 9005 |
| Depth (Key Commercial Data) | 52 mm |
| Width (Key Commercial Data) | 17.7 mm |
| Height (Key Commercial Data) | 45 mm |
| Nominal voltage UN (General) | 48 V AC |
| Residual current IPE (General) | ≤ 4 µA |
| Resistance in series (General) | 0 Ω |
| Capacity (line-earth) (General) | typ. 2 pF |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | C1 |
| Screw thread (Protective circuit) | M3 |
| Mounting type (Ambient conditions) | on base element |
| Max. required back-up fuse (General) | 2 A AC (T) |
| Weight per Piece (excluding packing) | 16.120 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Input attenuation aE, asym. (General) | typ. 0.1 dB (≤ 1 MHz / 50 Ω) |
| Stripping length (Protective circuit) | 8 mm |
| Connection method (Protective circuit) | Screw connection (in connection with the base element) |
| Horizontal pitch (Key Commercial Data) | 1 Div. |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Tightening torque (Protective circuit) | 0.5 Nm |
| Maximum continuous voltage UC (General) | 60 V DC |
| Direction of action (Ambient conditions) | Line-Earth Ground |
| Surge protection fault message (General) | none |
| Impulse durability (line-earth) (General) | C2 - 10 kV/5 kA |
| Standards/specifications (Connection data) | IEC 61643-21 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| Complete module depth (Key Commercial Data) | 65.5 mm |
| Complete module width (Key Commercial Data) | 17.7 mm |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Complete module height (Key Commercial Data) | 90 mm |
| Operating effective current ICat UC (General) | ≤ 2 µA |
| Conductor cross section AWG (Protective circuit) | 24 ... 12 |
| Voltage protection level Up(line-earth) (General) | ≤ 600 V (C2 - 10 kV / 5 kA) |
| Conductor cross section solid (Protective circuit) | 0.2 mm² ... 4 mm² |
| Total discharge current Itotal(8/20) µs (General) | 20 kA |
| Conductor cross section flexible (Protective circuit) | 0.2 mm² ... 2.5 mm² |
| Voltage protection level Upstatic (line-earth) (General) | ≤ 25 V (C2 - 10 kV / 5 kA) |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 20 kA |
| Pulse discharge current Iimp(10/350) µs (line-earth) (General) | 5 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 600 V |
| Cut-off frequency fg (3 dB), asym. (GND) in 50 Ohm system (General) | typ. 100 MHz |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 25 V |
| Arrester can be tested with CHECKMASTER from software version: (Ambient conditions) | From SW rev. 1.10 |
Product Description
Plug-in surge protection for the base element, surge protection for two signal cables grounded on one side.
