PT 1X2-BE/FM

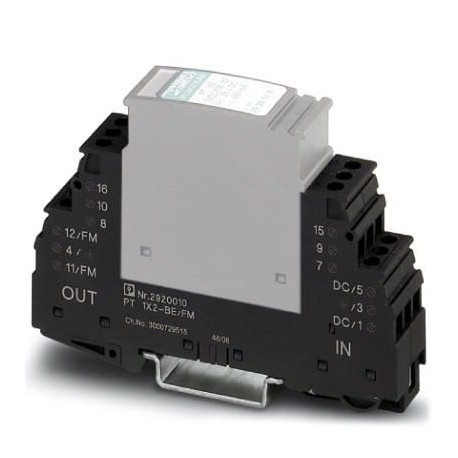

PT 1X2-BE/FM 2920010 PHOENIX CONTACT Type 2 surge protection base element
$0.00USD
3560 in stock
Key Specifications
GTIN:4046356154024
Orderkey:2920010
Catalog page:Page 90 (TT-2011)
Depth (Note):52 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356154024 |
| Orderkey | 2920010 |
| Catalog page | Page 90 (TT-2011) |
| Depth (Note) | 52 mm |
| Packing unit | 10 pc |
| Width (Note) | 17.7 mm |
| Height (Note) | 89.8 mm |
| Country of origin | DE (Germany) |
| (Connection data) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85371098 |
| Screw thread (General) | M3 |
| Horizontal pitch (Note) | 1 Div. |
| Type (Ambient conditions) | Base element, DIN rail mounting |
| Color (Ambient conditions) | black |
| Stripping length (General) | 8 mm |
| Connection method (General) | Screw connection |
| Tightening torque (General) | 0.8 Nm |
| China RoHS (Connection data) | Environmentally Friendly Use Period = 50 |
| Complete module depth (Note) | 65.5 mm |
| Complete module width (Note) | 17.7 mm |
| Complete module height (Note) | 90 mm |
| Connection method IN (General) | Screw terminal blocks |
| Connection method OUT (General) | Screw terminal blocks |
| Degree of protection (Dimensions) | IP20 |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Weight per Piece (excluding packing) | 51.060 g |
| Conductor cross section AWG (General) | 24 ... 12 |
| Conductor cross section solid (General) | 0.2 mm² ... 4 mm² |
| Direction of action (Ambient conditions) | Shield-Earth Ground |
| Number of positions (Ambient conditions) | 2 |
| Conductor cross section flexible (General) | 0.2 mm² ... 2.5 mm² |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
Product Description
Base element for housing a plug-in protection with status indication for a two-wire circuit without earth potential
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
