PT 1X2-24AC/FM-ST

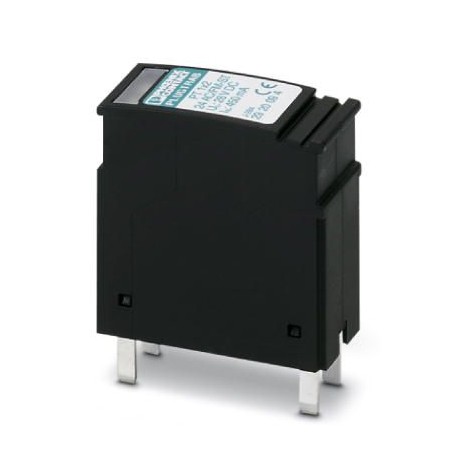

PT 1X2-24AC/FM-ST 2920094 PHOENIX CONTACT Surge protection plug
$0.00USD
3426 in stock
Key Specifications
GTIN:4046356153997
Note:Made to Order (non-returnable)
Orderkey:2920094
(General):C3 - 100 A
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356153997 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2920094 |
| (General) | C3 - 100 A |
| Catalog page | Page 91 (TT-2011) |
| Depth (Note) | 52 mm |
| Packing unit | 10 pc |
| Width (Note) | 17.7 mm |
| Height (Note) | 45 mm |
| Country of origin | DE (Germany) |
| (Connection data) | DIN EN 61643-21 |
| Custom tariff number | 85363010 |
| (Ambient conditions) | IEC 60664-1 |
| Horizontal pitch (Note) | 1 Div. |
| Rated current (General) | 450 mA (45°C) |
| Type (Ambient conditions) | Male |
| Color (Ambient conditions) | black |
| Complete module depth (Note) | 65.5 mm |
| Complete module width (Note) | 17.7 mm |
| Nominal voltage UN (General) | 24 V AC |
| Complete module height (Note) | 90 mm |
| Capacity (line-line) (General) | typ. 1.1 nF |
| Residual current IPE (General) | ≤ 2 µA (Directly grounded) |
| Resistance in series (General) | 2.2 Ω ±10 % (7-8/11-12) |
| Capacity (line-earth) (General) | typ. 4 pF |
| VDE requirement class (General) | C1 |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | C1 |
| Screw thread (Protective circuit) | M3 |
| Mounting type (Ambient conditions) | on base element |
| Input attenuation aE, sym. (General) | typ. 0.5 dB (≤ 1.5 MHz / 50 Ω) |
| Max. required back-up fuse (General) | 500 mA (T) |
| Weight per Piece (excluding packing) | 27.150 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Response time tA(line-line) (General) | ≤ 1 ns |
| Stripping length (Protective circuit) | 8 mm |
| Connection method (Protective circuit) | Screw connection (in connection with the base element) |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Tightening torque (Protective circuit) | 0.8 Nm |
| Maximum continuous voltage UC (General) | 40 V DC |
| Standards/regulations (Connection data) | IEC 61643-21 |
| Direction of action (Ambient conditions) | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Impulse durability (line-line) (General) | C2 - 10 kV/5 kA |
| Surge protection fault message (General) | Optical, remote indicator contact |
| Impulse durability (line-earth) (General) | C2 - 10 kV/5 kA |
| Standards/specifications (Connection data) | IEC 61643-21 2002 |
| Residual voltage at In(line-line) (General) | ≤ 55 V |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Operating effective current ICat UC (General) | ≤ 5 µA |
| Utilization restriction (Key Commercial Data) | EMC: class A product, see manufacturer's declaration in the download area |
| Conductor cross section AWG (Protective circuit) | 24 ... 12 |
| Voltage protection level Up(line-line) (General) | ≤ 55 V (C1 - 500 V / 250 A) |
| Voltage protection level Up(line-earth) (General) | ≤ 450 V (C2 - 10 kV / 5 kA) |
| Conductor cross section solid (Protective circuit) | 0.2 mm² ... 4 mm² |
| Pulse discharge current Iimp(10/350) µs (General) | 2.5 kA |
| Total discharge current Itotal(8/20) µs (General) | 20 kA |
| Conductor cross section flexible (Protective circuit) | 0.2 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Alternating current carrying capacity (line-earth) (General) | 5 A - 1 s |
| Cut-off frequency fg (3 dB), sym. in 50 Ohm system (General) | typ. 8 MHz |
| Nominal discharge current In(8/20) µs (line-line) (General) | 10 kA |
| Cut-off frequency fg (3 dB), sym. in 150 Ohm system (General) | typ. 3 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 10 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) (General) | 23 A (25 °C) |
| Residual voltage with Ian (10/1000) µs (line-line) (General) | ≤ 65 V |
| Output voltage limitation at 1 kV/µs (line-line) spike (General) | ≤ 70 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 450 V |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 55 V |
| Max. discharge current Imax(8/20) µs maximum (line-line) (General) | 10 kA |
| Standards for cearances and creepage distances (Ambient conditions) | VDE 0110-1 |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) | 10 kA |
Product Description
Pluggable surge protection with diagnostic and status indication on the module and remote indication for a potential-free two-conductor signal circuit.
