PT 1X2-12AC-ST

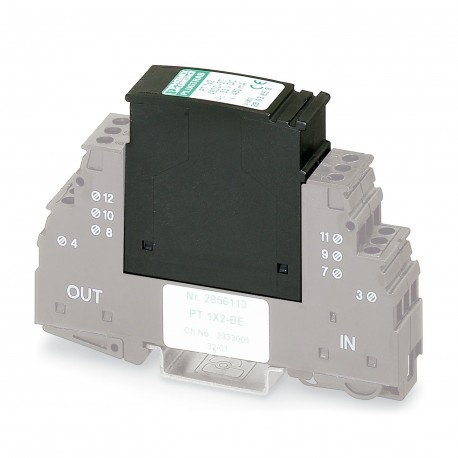

PT 1X2-12AC-ST 2856045 PHOENIX CONTACT Surge protection plug
$0.00USD
4966 in stock
Key Specifications
:PT 1X2+F-BE 2856126
Note:Technical data is valid in association with the following specified base elements:
Type:Male
Depth:52 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| PT 1X2+F-BE 2856126 | |
| Note | Technical data is valid in association with the following specified base elements: |
| Type | Male |
| Depth | 52 mm |
| Width | 17.7 mm |
| Height | 45 mm |
| Altitude | ≤ 2000 m (amsl) |
| Product type | Surge protection for MCR technology |
| Screw thread | M3 |
| Mounting type | on base element |
| Rated current | 450 mA (45 °C) |
| Product family | PLUGTRAB PT |
| Open side panel | No |
| Horizontal pitch | 1 Div. |
| Housing material | PA 6.6 |
| Pollution degree | 2 |
| Connection method | Screw connection (in connection with the base element) |
| Tightening torque | 0.5 Nm |
| Nominal voltage UN | 12 V AC |
| Dimensional drawing | |
| Direction of action | Line-Line & Line-Signal Ground/Shield & optional Signal Ground/Shield-Earth Ground |
| Number of positions | 2 |
| Resistance per path | 2.2 Ω ±10 % |
| Capacity (Core-Core) | typ. 2.5 nF |
| Degree of protection | IP20 |
| Overvoltage category | III |
| Residual current IPE | ≤ 1 µA (with PT 1X2+F-BE) |
| Capacity (Core-Earth) | typ. 4 pF (with PT 1X2-BE) |
| Complete module depth | 65.5 mm |
| Complete module width | 17.7 mm |
| Wire pairs per module | 1 |
| Complete module height | 90 mm |
| IEC test classification | C1 |
| Standards/specifications | IEC 61643-21 |
| Input attenuation aE, sym. | typ. 0.5 dB (≤ 700 kHz/50 Ω) |
| Max. required back-up fuse | 500 mA (T) |
| Conductor cross section AWG | 24 ... 12 |
| Response time tA(line-line) | ≤ 1 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Maximum continuous voltage UC | 18 V DC |
| Impulse durability (line-line) | C2 - 10 kV / 5 kA |
| Surge protection fault message | none |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Impulse durability (line-earth) | C1 - 1 kV / 500 A |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Operating effective current ICat UC | ≤ 5 A |
| Flammability rating according to UL 94 | V-0 |
| Voltage protection level Up(line-line) | ≤ 55 V (C2 - 10 kV / 5 kA) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Voltage protection level Up(line-earth) | ≤ 450 V (C1 - 1 kV / 500 A with PT 1X2-BE) |
| Pulse discharge current Iimp(10/350) µs | 2.5 kA |
| Total discharge current Itotal(8/20) µs | 20 kA |
| Residual voltage at In(conductor-conductor) | ≤ 25 V |
| Voltage protection level Upstatic (line-line) | ≤ 25 V (C2 - 10 kV / 5 kA) |
| Voltage protection level Upstatic (line-earth) | ≤ 50 V (C2 - 10 kV / 5 kA with PT 1X2-BE) |
| Nominal discharge current In(8/20) µs (line-line) | 10 kA |
| Cut-off frequency fg (3 dB), sym. in 50 Ω system | typ. 4 MHz |
| Nominal pulse current Ian (10/1000) µs (line-line) | 49 A |
| Residual voltage with Ian (10/1000) µs (line-line) | ≤ 31 V |
| Cut-off frequency fg (3 dB), sym. in 150 Ω system | typ. 1.5 MHz |
| Cut-off frequency fg (3 dB), sym. in 600 Ω system | typ. 400 kHz |
| Nominal discharge current In(8/20) µs (line-ground) | 10 kA |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 450 V (with PT 1X2-BE) |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 25 V |
| Max. discharge current Imax(8/20) µs maximum (line-line) | 10 kA |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 25 V (with PT 1X2-BE) |
| Max. discharge current Imax(8/20) µs maximum (line-earth) | 10 kA |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 1.00 |
Product Description
PT protective connector with protective circuit for a 2-wire floating signal circuit. HART-compatible.
