MNT-1 D/WH

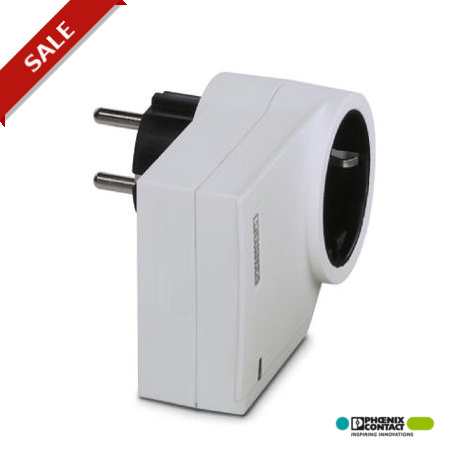

MNT-1 D/WH 2882213 PHOENIX CONTACT Attachment connector with surge protection for mains sockets, mains contr..
$0.00USD
4477 in stock
Key Specifications
:IEC 60664-1
Type:Attachment plug
Color:pure white RAL 9010
Depth:78 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| IEC 60664-1 | |
| Type | Attachment plug |
| Color | pure white RAL 9010 |
| Depth | 78 mm |
| Width | 56 mm |
| Height | 76 mm |
| EN type | T3 |
| Mounting type | Plugging into the mains socket |
| Housing material | PA 6 |
| Connection method | Grounding plug/socket |
| Connection type IN | Grounding plug |
| Nominal voltage UN | 230 V AC |
| Connection type OUT | Grounding socket |
| Direction of action | L(N)-PE |
| Combination wave UOC | 4 kV |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Residual current IPE | ≤ 5 µA |
| Response time tA(L-N) | ≤ 25 ns |
| Response time tA(L-PE) | ≤ 100 ns |
| Response time tA(N-PE) | ≤ 100 ns |
| IEC test classification | III |
| Standards/specifications | IEC 61643-11 2011 |
| Max. required back-up fuse | 16 A AC (gG / B / C) |
| For country-specific use in | D, A, NL, E, S, FIN, TR |
| Standby power consumption PC | ≤ 1 VA |
| Energy absorption symmetrical | 140 J (L-N) |
| Arrester rated voltage UC(L-N) | 275 V AC |
| Enery absorption, asymmetrical | 220 J (L(N)-PE) |
| Surge protection fault message | optical |
| Ambient temperature (operation) | -25 °C ... 75 °C |
| Arrester rated voltage UC(L-PE) | 360 V AC |
| Arrester rated voltage UC(N-PE) | 360 V AC |
| Voltage protection level Up(L-N) | ≤ 1.2 kV |
| Voltage protection level Up(L-PE) | ≤ 1.5 kV |
| Voltage protection level Up(N-PE) | ≤ 1.5 kV |
| Flammability rating according to UL 94 | V-0 |
| Nominal discharge current In(8/20) µs | 3 kA (> 5x) |
| Ambient temperature (storage/transport) | -25 °C ... 75 °C |
| Standards for cearances and creepage distances | EN 60664-1 |
Product Description
Adapter with surge protection for power outlets, mains control lamp, optical power and fault indication. Country-specific usable in: D, A, I, NL, S, N, FIN, E, P. Color: White
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
