LIT 2X1-24

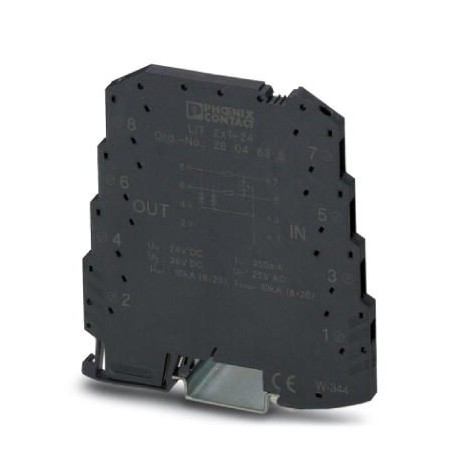

LIT 2X1-24 2804636 PHOENIX CONTACT Surge protection device
$0.00USD
3976 in stock
Key Specifications
GTIN:4046356428316
Orderkey:2804636
(General):D1 - 500 A
Catalog page:Page 117 (C-4-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356428316 |
| Orderkey | 2804636 |
| (General) | D1 - 500 A |
| Catalog page | Page 117 (C-4-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Capacity (General) | ≤ 1.3 nF (per channel) |
| Custom tariff number | 85363010 |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Rated current (General) | 350 mA (40° C) |
| Type (Ambient conditions) | DIN rail module, one-piece |
| Color (Ambient conditions) | anthracite grey RAL 7016 |
| Depth (Key Commercial Data) | 102.5 mm (incl. DIN rail 7.5 mm) |
| Width (Key Commercial Data) | 6.2 mm |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Height (Key Commercial Data) | 93.1 mm |
| Nominal voltage UN (General) | 24 V DC |
| Residual current IPE (General) | ≤ 4 µA |
| Resistance in series (General) | 3.3 Ω 20 % |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | C1 |
| Screw thread (Protective circuit) | M3 |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Connection method (Connection data) | DIN rail NS35 |
| (Connection, equipotential bonding) | EN 61643-21 2001 + A1:2009 + A2:2013 |
| Max. required back-up fuse (General) | 315 mA (T) |
| Weight per Piece (excluding packing) | 53.460 g |
| Housing material (Ambient conditions) | PBT |
| Input attenuation aE, asym. (General) | typ. 0.3 dB (1 MHz / 50 Ω) |
| Stripping length (Protective circuit) | 8 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 50 |
| Connection method (Protective circuit) | Screw connection |
| Response time tA(line-earth) (General) | ≤ 1 ns |
| Tightening torque (Protective circuit) | 0.8 Nm |
| Maximum continuous voltage UC (General) | 36 V DC |
| Direction of action (Ambient conditions) | Line-Earth Ground |
| Surge protection fault message (General) | none |
| Impulse durability (line-earth) (General) | C1 - 500 V / 250 A |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Residual voltage at In(line-earth) (General) | ≤ 50 V |
| Operating effective current ICat UC (General) | ≤ 2 µA |
| Conductor cross section AWG (Protective circuit) | 24 ... 14 |
| Voltage protection level Up(line-earth) (General) | ≤ 60 V (C1 - 500 V / 250 A) |
| Conductor cross section solid (Protective circuit) | 0.2 mm² ... 2.5 mm² |
| Total discharge current Itotal(8/20) µs (General) | 10 kA |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
| Conductor cross section flexible (Protective circuit) | 0.2 mm² ... 2.5 mm² |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Alternating current carrying capacity (line-earth) (General) | 5 A - 1 s |
| Standards/specifications (Connection, equipotential bonding) | IEC 61643-21 A2:2012 |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) (General) | 50 A |
| Residual voltage with Ian (10/1000) µs (line-earth) (General) | ≤ 60 V |
| Pulse discharge current Iimp(10/350) µs (line-earth) (General) | 500 A |
| Cut-off frequency fg (3 dB), asym. (PE) in 50 Ohm system (General) | typ. 6 MHz |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 60 V |
| Cut-off frequency fg (3 dB), asym. (PE) in 150 Ohm system (General) | typ. 2 MHz |
| Max. discharge current Imax(8/20) µs maximum (line-line) (General) | 10 kA |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) | 20 kA (in total) |
Product Description
Surge protection on the module for one-piece symmetrical rail mounting, 6.2 mm wide, for two conductors with common reference potential.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
