FLT-ISG-100-EX

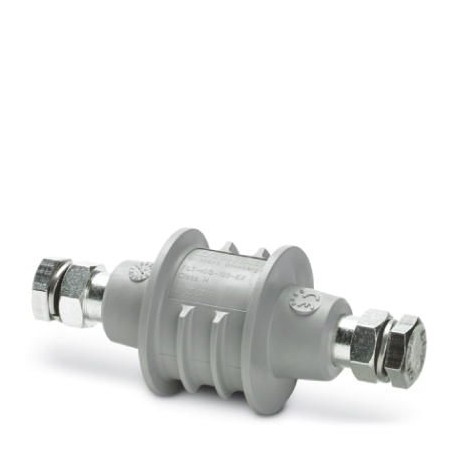

FLT-ISG-100-EX 2905579 PHOENIX CONTACT Spark gap
$0.00USD
3656 in stock
Key Specifications
GTIN:4055626002446
Orderkey:2905579
Catalog page:Page 78 (C-4-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626002446 |
| Orderkey | 2905579 |
| Catalog page | Page 78 (C-4-2017) |
| Packing unit | 1 pc |
| Note (General) | Connection: screw (DIN 933), M10x25, wrench size: 17 mm, spring washer (DIN 7980), size: 10 |
| Country of origin | DE (Germany) |
| (Connection data) | EN 62561-3 2012 |
| Custom tariff number | 73269098 |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Type (Ambient conditions) | Screw-on module |
| Color (Ambient conditions) | traffic grey A RAL 7042 |
| (Standards and Regulations) | Ex tb IIIC T80 °C Db IP66/67 |
| Length (Key Commercial Data) | 100 mm +2 mm |
| ATEX (Standards and Regulations) | II 2 G Ex d IIC T6 Gb |
| Degree of protection (Dimensions) | IP67 (according to IEC 60529) |
| IECEx (Standards and Regulations) | Ex d IIC T6 Gb |
| Screw thread (Protective circuit) | M10 |
| Mounting type (Ambient conditions) | Screw mounting |
| REACh SVHC (Conformity / approvals) | Lead 7439-92-1 |
| Connection name (Protective circuit) | Flange |
| Weight per Piece (excluding packing) | 285.400 g |
| Connection method (Protective circuit) | Connection bolts |
| Diameter housing (Key Commercial Data) | 45.50 mm |
| Standards/regulations (Connection data) | IEC 62561-3 2012 |
| Response time tA (Additional descriptions) | ≤ 100 ns |
| Ambient temperature (operation) (Dimensions) | -20 °C ... 60 °C |
| Permissible humidity (operation) (Dimensions) | 95 % (According to DIN ISO 60068-2-30 method 1) |
| Surge protection fault message (Ambient conditions) | none |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 60 °C |
| Rated DC withstand voltage UwDC (Additional descriptions) | 354 V DC |
| Alternating voltage response Uaw (Additional descriptions) | ≤ 0.5 kV |
| Rated alternating discharge current (Additional descriptions) | 500 A / 0.2 s (at 50/60 Hz, max. discharge current in the event of external voltage influence at the installation location) |
| Nominal discharge current In(8/20) µs (Additional descriptions) | 100 kA |
| Rated impulse sparkover voltage Ur imp (Additional descriptions) | ≤ 1.25 kV |
| Rated power-frequency withstand voltage UwAC (Additional descriptions) | 250 V AC |
| Maximum discharge current Imax(8/20) µs (Shield-Earth) (Additional descriptions) | 100 kA |
Product Description
Separation arc unloader for the Ex zone with plastic enclosure and threaded screw for M10 connection. For the indirect connection/grounding of separate system parts depending on the operation in the e
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
