FLT-CP-350-ST

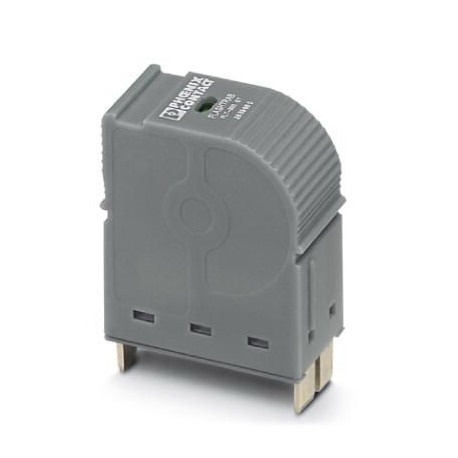

FLT-CP-350-ST 2881887 PHOENIX CONTACT Type 1 surge protection plug
$0.00USD
4671 in stock
Key Specifications
GTIN:4046356098557
Note:Made to Order (non-returnable)
Orderkey:2881887
Catalog page:Page 36 (C-6-2013)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356098557 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2881887 |
| Catalog page | Page 36 (C-6-2013) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| (UL specifications) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Custom tariff number | 85363030 |
| (Ambient conditions) | L-N |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Type (Ambient conditions) | Male |
| (Additional descriptions) | 457 V AC (120 min / safe failure mode) |
| Color (Ambient conditions) | gray/blue |
| Depth (Key Commercial Data) | 56.4 mm |
| Width (Key Commercial Data) | 23.5 mm |
| EN type (Ambient conditions) | T1 / T2 |
| Height (Key Commercial Data) | 46.6 mm |
| SPD Type (Protective circuit) | 4CA |
| China RoHS (UL specifications) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (UL specifications) | Lead 7439-92-1 |
| Shock (operation) (Dimensions) | 25g (Half-sine / 11 ms / 3x ±X, ±Y, ±Z) |
| Degree of protection (Dimensions) | IP20 |
| Nom. voltage (Protective circuit) | 240 V AC |
| Mounting type (Ambient conditions) | on base element |
| Vibration (operation) (Dimensions) | 5g (5 - 500 Hz/2.5 h/X, Y, Z) |
| Weight per Piece (excluding packing) | 127.930 g |
| Housing material (Ambient conditions) | PBT |
| Horizontal pitch (Key Commercial Data) | 2 Div. |
| Nominal frequency (Protective circuit) | 50/60 Hz |
| Mode of protection (Ambient conditions) | L-PEN |
| Mode of protection (Protective circuit) | L-N |
| Degree of pollution (Ambient conditions) | 2 |
| Number of positions (Ambient conditions) | 1 |
| Response time tA (Additional descriptions) | ≤ 25 ns |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| IEC power supply system (Ambient conditions) | TT |
| IEC test classification (Ambient conditions) | I / II |
| Nominal voltage UN (Additional descriptions) | 240 V AC (TN) |
| TOV behavior at UT (Additional descriptions) | 415 V AC (5 s / withstand mode) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % |
| Nominal frequency fN (Additional descriptions) | 50 Hz (60 Hz) |
| Power distribution system (Protective circuit) | Split phase |
| Residual voltage Ures (Additional descriptions) | ≤ 1.5 kV (at In) |
| Surge protection fault message (Ambient conditions) | optical |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 80 °C |
| Voltage protection level Up (Additional descriptions) | ≤ 1.5 kV |
| Nominal discharge current In(L-N) (Protective circuit) | 20 kA |
| Maximum continuous voltage UC (Additional descriptions) | 350 V AC |
| Measured limiting voltage MLV (L-N) (Protective circuit) | 1340 V |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Short-circuit current rating ISCCR (Additional descriptions) | 25 kA (264 V AC) |
| Follow current interrupt rating Ifi (Additional descriptions) | 25 kA (264 V AC) |
| Max. backup fuse with branch wiring (Additional descriptions) | 315 A (gG) |
| Nominal discharge current In(8/20) µs (Additional descriptions) | 25 kA |
| Maximum continuous operating voltage MCOV (L-N) (Protective circuit) | 264 V AC |
| Impulse discharge current (10/350) µs, charge (Additional descriptions) | 12.5 As |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs (Additional descriptions) | ≤ 1.5 kV |
| Impulse discharge current (10/350) µs, peak value limp (Additional descriptions) | 25 kA |
| Impulse discharge current (10/350) µs, specific energy (Additional descriptions) | 160 kJ/Ω |
Product Description
Type 1 / Class I / B (lightning current discharger), spare plug-in protection for L-N and L-PEN routes, can be combined with the FLASHTRAB compact product series.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
