FLT 35 CTRL-4.0

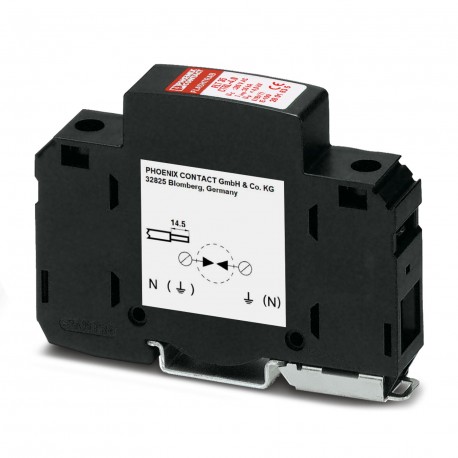

FLT 35 CTRL-4.0 2801635 PHOENIX CONTACT Combination type 1/2 protective device
$0.00USD
3775 in stock
Key Specifications
GTIN:4046356907651
Orderkey:2801635
Packing unit:1 pc
Note (General):100 % lightning impulse sparkover voltage (1.2/50) µs ≤ 1.5 kV
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356907651 |
| Orderkey | 2801635 |
| Packing unit | 1 pc |
| Note (General) | 100 % lightning impulse sparkover voltage (1.2/50) µs ≤ 1.5 kV |
| Country of origin | DE (Germany) |
| (Connection data) | EN 61643-11 2012 |
| Custom tariff number | 85363030 |
| (Ambient conditions) | TN-S |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Type (Ambient conditions) | DIN rail module, one-piece |
| (Additional descriptions) | 440 V AC (120 min / withstand mode) |
| Color (Ambient conditions) | black |
| Depth (Key Commercial Data) | 65.5 mm |
| Width (Key Commercial Data) | 17.6 mm |
| EN type (Ambient conditions) | T1 |
| Height (Key Commercial Data) | 90 mm |
| Degree of protection (Dimensions) | IP20 (only when all terminal points are used) |
| Screw thread (Protective circuit) | M5 |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Weight per Piece (excluding packing) | 165.190 g |
| Housing material (Ambient conditions) | PA 6.6 |
| Stripping length (Protective circuit) | 14.5 mm |
| Connection method (Protective circuit) | Screw terminal blocks |
| Horizontal pitch (Key Commercial Data) | 1 Div. |
| Tightening torque (Protective circuit) | 4.5 Nm |
| Mode of protection (Ambient conditions) | L-PEN |
| Standards/regulations (Connection data) | IEC 61643-11 2011 |
| Degree of pollution (Ambient conditions) | 2 |
| Number of positions (Ambient conditions) | 1 |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| IEC power supply system (Ambient conditions) | TT |
| IEC test classification (Ambient conditions) | I |
| Nominal voltage UN (Additional descriptions) | 230/400 V AC (TN) |
| Permissible humidity (operation) (Dimensions) | 5 % ... 95 % |
| Nominal frequency fN (Additional descriptions) | 50 Hz (60 Hz) |
| Residual current IPE (Additional descriptions) | ≤ 0.5 mA |
| Rated load current IL (Additional descriptions) | 80 A |
| Conductor cross section AWG (Protective circuit) | 6 ... 2 |
| Response time tA(L-PEN) (Additional descriptions) | ≤ 100 ns |
| Conductor cross section solid (Protective circuit) | 2.5 mm² ... 35 mm² |
| Surge protection fault message (Ambient conditions) | none |
| TOV behavior at UT(L-PEN) (Additional descriptions) | 440 V AC (5 s / withstand mode) |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 85 °C |
| Conductor cross section flexible (Protective circuit) | 2.5 mm² ... 25 mm² |
| Standby power consumption PC (Additional descriptions) | ≤ 200 mVA |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Short-circuit current rating ISCCR (Additional descriptions) | 3 kA (260 V AC) |
| Voltage protection level Up(L-PEN) (Additional descriptions) | ≤ 4 kV |
| Max. backup fuse with branch wiring (Additional descriptions) | 400 A AC (gG) |
| Follow current interrupt rating Ifi(L-PEN) (Additional descriptions) | 3 kA (260 V AC) |
| Max. backup fuse with V-type through wiring (Additional descriptions) | 80 A AC (gG) |
| Maximum continuous operating voltage UC(L-PEN) (Additional descriptions) | 385 V AC |
| Nominal discharge current In(8/20) µs (L-PEN) (Additional descriptions) | 35 kA |
| Impulse discharge current (10/350) µs (L-PEN), charge (Additional descriptions) | 17.5 As |
| Impulse discharge current (10/350) µs (L-PEN), specific energy (Additional descriptions) | 306 J/Ω |
| Impulse discharge current (10/350) µs (L-PEN), peak current value Iimp (Additional descriptions) | 35 kA |
Product Description
Type 1/Class I/B (Lightning Current Discharger) discharger with encapsulated Arc-Chopping arc discharger and priming electronics, 1 channel. Protection level: 4 kV. Housing width: 17.5 mm (1 pc)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
