ECP-E3 12A

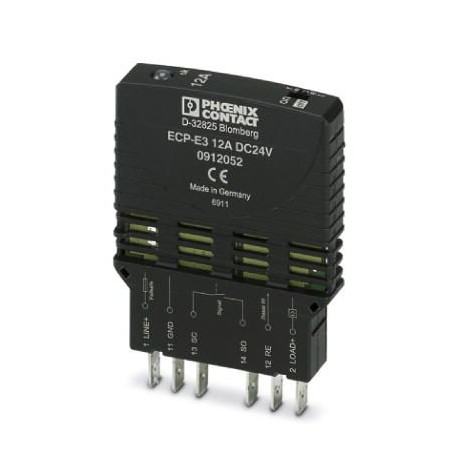

ECP-E3 12A 0912052 PHOENIX CONTACT Electronic device circuit breaker
$0.00USD
3446 in stock
Key Specifications
GTIN:4046356144285
Note:Made to Order (non-returnable)
Orderkey:0912052
(General):18 V DC ... 32 V DC
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356144285 |
| Note | Made to Order (non-returnable) |
| Orderkey | 0912052 |
| (General) | 18 V DC ... 32 V DC |
| Catalog page | Page 325 (C-4-2017) |
| Packing unit | 5 pc |
| Fuse (General) | electronic |
| Country of origin | DE (Germany) |
| (Connection data) | CSA 22.2 No. 14 |
| Fuse type (General) | Automatic device |
| Custom tariff number | 85362010 |
| Depth (Electrical data) | 70 mm |
| Width (Electrical data) | 12.5 mm |
| Height (Electrical data) | 60 mm |
| Color (Key Commercial Data) | black |
| Operating voltage (General) | 24 V DC |
| Nominal current IN (General) | 12 A |
| Degree of pollution (General) | 2 |
| Dielectric strength (General) | max. 32 V DC (Load circuit) |
| Rated surge voltage (General) | 0.5 kV |
| Required backup fuse (General) | not required, integrated failsafe element |
| Switching capacity ICN (General) | Active current limitation |
| Degree of protection (Dimensions) | IP30 (Actuation area) |
| Height NS 35/15 (Electrical data) | 151.5 mm |
| Height NS 35/7,5 (Electrical data) | 144 mm |
| Overvoltage category_GRP (General) | II |
| Insulating material group (General) | I |
| Mounting type (Key Commercial Data) | on base element |
| Weight per Piece (excluding packing) | 44.540 g |
| Connection method (Ambient conditions) | Screw connection |
| Number of levels (Key Commercial Data) | 1 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Complete module depth (Electrical data) | 112.5 mm |
| Complete module width (Electrical data) | 38 mm |
| Complete module height (Electrical data) | 115 mm |
| Closed-circuit current range I0 (General) | typ. 25 mA ±5 mA (When switched on) |
| Insulating material (Key Commercial Data) | PA66/6 |
| Number of positions (Key Commercial Data) | 1 |
| Standards/specifications (Connection data) | UL 2367 |
| Ambient temperature (operation) (Dimensions) | 0 °C ... 50 °C (non-condensing) |
| Overvoltage category_GRP (Key Commercial Data) | II |
| Installation instructions (Key Commercial Data) | When mounted in rows without convection cooling, the nominal device current should only be led to a maximum of 80% due to the thermal effect during continuous operation (100% operating factor).Special precautionary measures must be taken in systems or machines, to prevent components from restarting (e.g., use of a safety PLC).Parallel connection of multiple circuit breakers is not permitted. |
| Flammability rating according to UL 94 (Key Commercial Data) | V0 |
Product Description
Electronic device protection switches, number of poles: 1, connection type: Screw connection, width: 12.5 mm, fuse type: electronic, fuse type: automatic fuse, mounting class: in base element, Color:
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
