DT-TELE-SHDSL

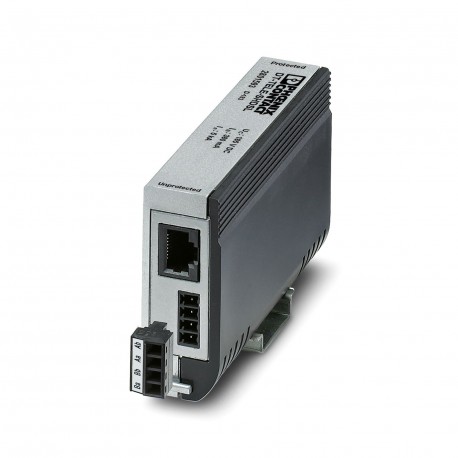

DT-TELE-SHDSL 2801593 PHOENIX CONTACT Surge protection device
$0.00USD
3883 in stock
Key Specifications
:C1
Note:2002
Type:Attachment plug for DIN rail mounting
Color:silver-colored
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| C1 | |
| Note | 2002 |
| Type | Attachment plug for DIN rail mounting |
| Color | silver-colored |
| Depth | 63 mm |
| Width | 25 mm |
| Height | 103 mm |
| Product type | Surge protection for information technology |
| Screw thread | M2 |
| Mounting type | Connection-specific attachment plug and DIN rail, 35 mm |
| Rated current | ≤ 380 mA (25 °C) |
| Product family | DATATRAB |
| Open side panel | No |
| Article revision | 07 |
| Housing material | Zinc die-cast |
| Connection method | RJ45 / COMBICON |
| Tightening torque | 0.22 Nm |
| Dimensional drawing | |
| Direction of action | Line-Line & Line-Ground/Shield |
| Number of positions | 4 |
| Resistance per path | 3.3 Ω 20 % |
| Capacity (Core-Core) | 55 pF |
| Degree of protection | IP20 |
| Residual current IPE | ≤ 4 µA |
| Capacity (Core-Earth) | 7 pF |
| Standards/regulations | IEC 60664-1 / VDE 0110-1 |
| VDE requirement class | B2 |
| Wire pairs per module | 2 |
| IEC test classification | B2 |
| Standards/specifications | IEC 61643-21 |
| Input attenuation aE, sym. | typ. 0.3 dB (≤ 2,8 MHz / 100 Ω) |
| Conductor cross section AWG | 28 ... 16 |
| Response time tA(line-line) | ≤ 100 ns |
| Response time tA(line-earth) | ≤ 100 ns |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Maximum continuous voltage UC | 185 V DC |
| Impulse durability (line-line) | C1 - 1 kV / 500 A |
| Surge protection fault message | none |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Impulse durability (line-earth) | B2 - 4 kV / 100 A |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Operating effective current ICat UC | ≤ 6 µA |
| Voltage protection level Up(line-line) | 250 V (B2 - 100 A) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Voltage protection level Up(line-earth) | ≤ 580 V (B2 - 100 A) |
| Pulse discharge current Iimp(10/350) µs | 2.5 kA (Number of pulses category D1) |
| Total discharge current Itotal(8/20) µs | 10 kA |
| Nominal discharge current In(8/20) µs (line-line) | ≤ 5 kA |
| Nominal pulse current Ian (10/700) µs (line-line) | 150 A |
| Nominal pulse current Ian (10/1000) µs (line-line) | 100 A |
| Nominal pulse current Ian (10/700) µs (line-earth) | 150 A |
| Cut-off frequency fg (3 dB), sym. in 100 Ω system | 25 MHz |
| Nominal discharge current In(8/20) µs (line-ground) | ≤ 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-earth) | 100 A |
Product Description
Intermediate part with surge protection for two SHDSL telecommunication interfaces (ports). Connection: RJ45 (RJ12/RJ11) and plug-in screw terminal. Alternatively, it can be fitted on a rail.
