D-LAN-CAT.5E-U

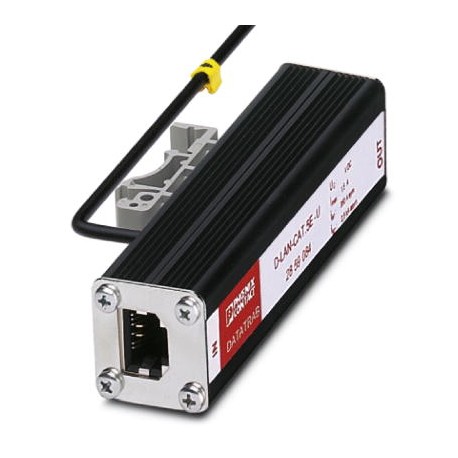

D-LAN-CAT.5E-U 2859084 PHOENIX CONTACT Surge protection device
$0.00USD
4176 in stock
Key Specifications
GTIN:4017918920470
Orderkey:2859084
(General):B3 - 2 kV / 25 A
Catalog page:Page 97 (TT-2005)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918920470 |
| Orderkey | 2859084 |
| (General) | B3 - 2 kV / 25 A |
| Catalog page | Page 97 (TT-2005) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85363010 |
| (Ambient conditions) | IEC 60664-1 |
| Rated current (General) | 1.5 A (25 °C) |
| Type (Ambient conditions) | Attachment plug for DIN rail mounting |
| Color (Ambient conditions) | black |
| Depth (Key Commercial Data) | 45.4 mm |
| Width (Key Commercial Data) | 25.4 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 94 mm |
| Capacity (line-line) (General) | 20 pF (typical) |
| Residual current IPE (General) | ≤ 100 µA |
| Capacity (line-earth) (General) | 1 pF (typical) |
| VDE requirement class (General) | C1 |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | C1 |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Connection method (Connection data) | Cable connection |
| (Connection, equipotential bonding) | DIN EN 50173-1 |
| Input attenuation aE, sym. (General) | 1 dB (up to 100 MHz, 100 Ω system) |
| Weight per Piece (excluding packing) | 125.000 g |
| Housing material (Ambient conditions) | Aluminum, anodized |
| Input attenuation aE, asym. (General) | |
| Response time tA(line-line) (General) | ≤ 500 ns |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Protective circuit) | RJ45 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Maximum continuous voltage UC (General) | ± 7 V DC |
| Degree of pollution (Ambient conditions) | 2 |
| Direction of action (Ambient conditions) | Line-Line & Line-Shield & Shield-Earth Ground |
| Impulse durability (line-line) (General) | B2 - 4 kV/100 A |
| Near-end crosstalk attenuation (General) | 36 dB (pair 3-6 against pair 4-5 in 100 Ω system / 100 MHz) |
| Surge protection fault message (General) | none |
| Connection method IN (Protective circuit) | RJ45 socket |
| Impulse durability (line-earth) (General) | B2 - 4 kV/100 A |
| Overvoltage category (Ambient conditions) | II |
| Connection method OUT (Protective circuit) | RJ45 socket |
| Connection technology (Protective circuit) | Network interfaces (e.g. Ethernet, Token Ring and CDDI/FDDI) |
| Residual voltage at In(line-line) (General) | ≤ 45 V |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Residual voltage at In(line-earth) (General) | ≤ 45 V |
| Operating effective current ICat UC (General) | ≤ 100 µA |
| Residual voltage at In(shield-earth) (General) | ≤ 700 V |
| Voltage protection level Up(line-line) (General) | ≤ 50 V (C1 - 500 V / 250 A) |
| Voltage protection level Up(line-earth) (General) | ≤ 65 V (C1, 500 V/250 A - PA-Ltg: 1 m) |
| Voltage protection level Up(shield-ground) (General) | ≤ 850 V (C2 - 4 kV/2 kA - PA-Ltg: 1 m) |
| Standards/regulations (Connection, equipotential bonding) | IEC 61643-21 |
| Nominal discharge current In(8/20) µs (line-line) (General) | 350 A |
| Nominal pulse current Ian (10/700) µs (line-line) (General) | 160 A |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system (General) | ≤ 100 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 2.5 kA |
| Nominal pulse current Ian (10/700) µs (line-earth) (General) | 160 A |
| Output voltage limitation at 1 kV/µs (line-line) spike (General) | ≤ 22 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 80 V (equipotential bonding lead: 1 m) |
| Standards for cearances and creepage distances (Ambient conditions) | DIN VDE 0110-1 |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) | 2.5 kA (in total) |
| Output voltage limitation at 1 kV/µs (shield-earth) spike (General) | ≤ 700 V (equipotential bonding lead: 1 m) |
Product Description
Fine surge protection according to class D (CAT.5e), for Token ring and Ethernet. RJ45 adapter with separate grounding line and fixing foot for DIN rail NS 35/7.5
