D-LAN-CAT.5-FP

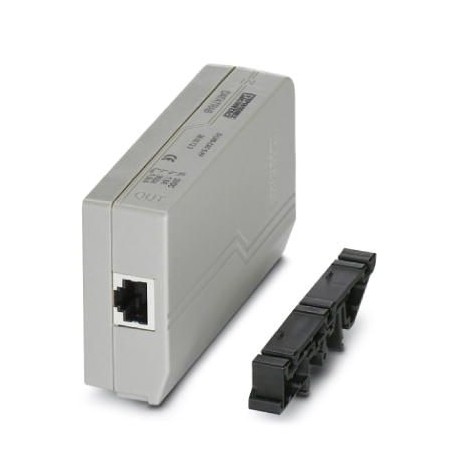

D-LAN-CAT.5-FP 2800723 PHOENIX CONTACT Surge protection device
$0.00USD
3637 in stock
Key Specifications
GTIN:4046356730273
Orderkey:2800723
(General):C1 - 700 V / 350 A
Catalog page:Page 143 (C-4-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356730273 |
| Orderkey | 2800723 |
| (General) | C1 - 700 V / 350 A |
| Catalog page | Page 143 (C-4-2017) |
| Packing unit | 1 pc |
| Country of origin | CN (China) |
| Custom tariff number | 85363010 |
| Type (Ambient conditions) | Attachment plug for DIN rail mounting |
| Color (Ambient conditions) | gray |
| Depth (Key Commercial Data) | 60 mm (incl. NS 35 adapter) |
| Width (Key Commercial Data) | 28 mm |
| Height (Key Commercial Data) | 110 mm |
| Nominal current IN (General) | ≤ 1.5 A (25 °C) |
| Capacity (line-line) (General) | typ. 15 pF (f= 1 MHz / VR= 0 V) |
| Capacity (line-earth) (General) | typ. 5 pF (f= 1 MHz / VR= 0 V) |
| VDE requirement class (General) | B2 |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | B2 |
| Mounting type (Ambient conditions) | Connection-specific attachment plug and DIN rail, 35 mm |
| Connection method (Connection data) | Cable connection |
| (Connection, equipotential bonding) | EN 61643-21/A1 2009 |
| Input attenuation aE, sym. (General) | ≤ 1 dB (100 MHz/100 Ω) |
| Weight per Piece (excluding packing) | 90.000 g |
| Housing material (Ambient conditions) | ABS |
| Response time tA(line-line) (General) | ≤ 1 ns |
| Connection method (Protective circuit) | RJ45 |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Maximum continuous voltage UC (General) | ± 5 V DC |
| Direction of action (Ambient conditions) | Line-Line & Line-Ground/Shield |
| Impulse durability (line-line) (General) | B2 - 1 kV / 25 A |
| Near-end crosstalk attenuation (General) | ≤ 63.3 dB (1 MHz/100 Ω) |
| Number of positions (Ambient conditions) | 8 |
| Connection method IN (Protective circuit) | RJ45 socket |
| Impulse durability (line-earth) (General) | B2 - 1 kV / 25 A |
| Connection method OUT (Protective circuit) | RJ45 socket |
| Residual voltage at In(line-line) (General) | ≤ 35 V (C1 - 350 A) |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Residual voltage at In(line-earth) (General) | ≤ 700 V (C1 - 350 A) |
| Operating effective current ICat UC (General) | ≤ 600 µA |
| Voltage protection level Up(line-line) (General) | ≤ 20 V (B2 - 1 kV / 25 A) |
| Voltage protection level Up(line-earth) (General) | ≤ 700 V (B2 - 1 kV / 25 A) |
| Maximum continuous voltage UC(wire-wire) (General) | ± 5 V DC (± 57 V DC / PoE+) |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Nominal discharge current In(8/20) µs (line-line) (General) | 350 A |
| Nominal pulse current Ian (10/700) µs (line-line) (General) | ≤ 25 A |
| Standards/specifications (Connection, equipotential bonding) | IEC 61643-21/A1 2008 |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system (General) | > 100 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 350 A |
| Nominal pulse current Ian (10/700) µs (line-earth) (General) | ≤ 25 A |
| Output voltage limitation at 1 kV/µs (line-line) spike (General) | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 750 V |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 25 V |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 750 V |
| Standards for cearances and creepage distances (Ambient conditions) | IEC 60664 |
Product Description
Thin surge protection for data networks up to 1 GBit/s. Use on Ethernet, Power over Ethernet (PoE, Mode A and Mode B), Token Ring, ISDN and DS1. RJ45 adapter with separate grounding line and fixing fo
