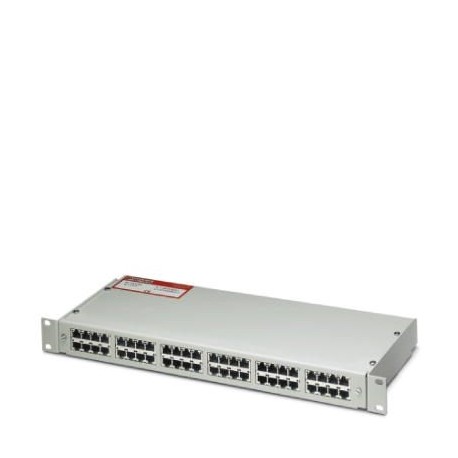

D-LAN-19"-24 2838791 PHOENIX CONTACT Surge protection device
$0.00USD
4681 in stock
Key Specifications
GTIN:4017918959968
Note:Made to Order (non-returnable)
Orderkey:2838791
(General):
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918959968 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2838791 |
| (General) | |
| Catalog page | Page 143 (C-4-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| (Connection data) | DIN EN 50173-1 |
| Custom tariff number | 85363010 |
| (Ambient conditions) | IEC 60664-1 |
| Rated current (General) | 1.5 A (25 °C) |
| Type (Ambient conditions) | 19" rack patch module |
| Color (Ambient conditions) | beige |
| Depth (Key Commercial Data) | 160 mm |
| Width (Key Commercial Data) | 483 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 44 mm |
| Capacity (line-line) (General) | typ. 20 pF |
| Residual current IPE (General) | ≤ 1 mA (jumper 2 unplugged) |
| Capacity (line-earth) (General) | typ. 1 pF |
| Degree of protection (Dimensions) | IP20 |
| Height unit (Key Commercial Data) | 1 U |
| IEC test classification (General) | C1 |
| Mounting type (Ambient conditions) | 19" rack |
| Input attenuation aE, sym. (General) | typ. 1 dB (≤ 100 MHz) |
| Weight per Piece (excluding packing) | 3,091.000 g |
| Housing material (Ambient conditions) | Sheet steel |
| Input attenuation aE, asym. (General) | |
| Response time tA(line-line) (General) | ≤ 1 ns |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Protective circuit) | RJ45 |
| Response time tA(line-earth) (General) | ≤ 1 ns |
| Maximum continuous voltage UC (General) | 6 V DC |
| Standards/regulations (Connection data) | IEC 61643-21 |
| Degree of pollution (Ambient conditions) | 2 |
| Direction of action (Ambient conditions) | Line-Line & Line-Signal Ground/Shield & Signal Ground/Shield-Earth Ground |
| Impulse durability (line-line) (General) | C1 - 500 V / 250 A |
| Near-end crosstalk attenuation (General) | typ. 36 dB (100 Ω system / 100 MHz) |
| Number of positions (Ambient conditions) | 24 |
| Response time tA (line-shield) (General) | ≤ 100 ns |
| Surge protection fault message (General) | none |
| Connection method IN (Protective circuit) | RJ45 socket |
| Impulse durability (line-earth) (General) | C1 - 500 V / 250 A |
| Overvoltage category (Ambient conditions) | II |
| Connection method OUT (Protective circuit) | RJ45 socket |
| Connection technology (Protective circuit) | Network interfaces (e.g. Ethernet, Token Ring and CDDI/FDDI) |
| Standards/specifications (Connection data) | IEC 61643-21 2000 |
| Impulse durability (shield-earth) (General) | C2 (4 kV / 2 kA) |
| Residual voltage at In(line-line) (General) | ≤ 65 V |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Residual voltage at In(line-earth) (General) | ≤ 45 V (J2 ON) |
| Operating effective current ICat UC (General) | ≤ 1 mA |
| Residual voltage at In(shield-earth) (General) | ≤ 700 V |
| Voltage protection level Up(line-line) (General) | ≤ 50 V (C1 - 500 V / 250 A) |
| Voltage protection level Up(line-earth) (General) | ≤ 40 V (C1 - 500 V / 250 A (J2 ON)) |
| Total discharge current Itotal(8/20) µs (General) | 10 kA |
| Voltage protection level Up(shield-ground) (General) | ≤ 800 V (with insulated housing) |
| Nominal discharge current In(8/20) µs (line-line) (General) | 350 A |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system (General) | > 100 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 350 A |
| Nominal pulse current Ian (10/1000) µs (line-line) (General) | 100 A |
| Nominal pulse current Ian (10/1000) µs (line-earth) (General) | 100 A |
| Nominal discharge current In(8/20) µs (shield-earth) (General) | 2.5 kA (with insulated housing) |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 20 V |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 30 V (J2 plugged) |
| Standards for cearances and creepage distances (Ambient conditions) | DIN VDE 0110-1 |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) | |
| Output voltage limitation at 1 kV/µs (shield-earth) static (General) | ≤ 700 V (with insulated shield) |
Product Description
19" rack with 24 surge-protected ports for data interfaces in Ethernet networks (1000Base-T), Token ring, FDDI/CDDI according to Class D/EN 50173 (CAT5e), connection in the protection module: RJ45 fem
