D-DS1-A/RJ45-BB

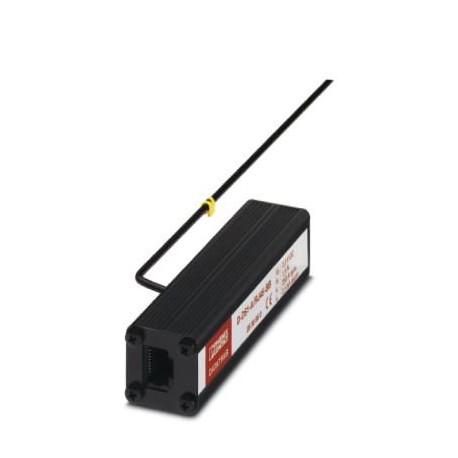

D-DS1-A/RJ45-BB 2838050 PHOENIX CONTACT Surge protection device
$0.00USD
3457 in stock
Key Specifications
GTIN:4017918176372
Note:Made to Order (non-returnable)
Orderkey:2838050
(General):D1 - 1 kA
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918176372 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2838050 |
| (General) | D1 - 1 kA |
| Catalog page | Page 129 (C-6-2013) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85363010 |
| (Ambient conditions) | IEC 60664-1 |
| Type (Ambient conditions) | Attachment plug |
| Color (Ambient conditions) | black |
| Depth (Key Commercial Data) | 102 mm |
| Width (Key Commercial Data) | 25.4 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 25.4 mm |
| Nominal current IN (General) | 1.5 A (25 °C) |
| Capacity (line-line) (General) | 20 pF (f=1 MHz / VR= 0 V) |
| Residual current IPE (General) | ≤ 4 µA |
| Resistance in series (General) | |
| VDE requirement class (General) | C2 |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | C2 |
| Mounting type (Ambient conditions) | Connection-specific intermediate plugging |
| Input attenuation aE, sym. (General) | 0.1 dB (≤ 10 MHz) |
| Weight per Piece (excluding packing) | 123.200 g |
| Housing material (Ambient conditions) | Aluminum |
| Response time tA(line-line) (General) | ≤ 500 ns |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Connection method (Protective circuit) | RJ45 |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Maximum continuous voltage UC (General) | 7 V DC |
| Standards/regulations (Connection data) | IEC 61643-21 |
| Direction of action (Ambient conditions) | Line-Line & Line-Earth Ground |
| Impulse durability (line-line) (General) | C1 - 500 V / 250 A |
| Surge protection fault message (General) | none |
| Total surge current (8/20) µs (General) | 10 kA |
| Connection method IN (Protective circuit) | RJ45 socket |
| Impulse durability (line-earth) (General) | C2 - 10 kV/5 kA |
| Connection method OUT (Protective circuit) | RJ45 socket |
| Standards/specifications (Connection data) | IEC 61643-21 |
| Residual voltage at In(line-line) (General) | ≤ 50 V |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 80 °C |
| Residual voltage at In(line-earth) (General) | ≤ 25 V |
| Operating effective current ICat UC (General) | ≤ 1 mA |
| Voltage protection level Up(line-line) (General) | ≤ 50 V |
| Voltage protection level Up(line-earth) (General) | ≤ 600 V |
| Nominal discharge current In(8/20) µs (line-line) (General) | 350 A |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system (General) | ≥ 100 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 2.5 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 450 V |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 20 V |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 450 V |
| Standards for cearances and creepage distances (Ambient conditions) | VDE 0110-1 |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) |
