CTM ISDN

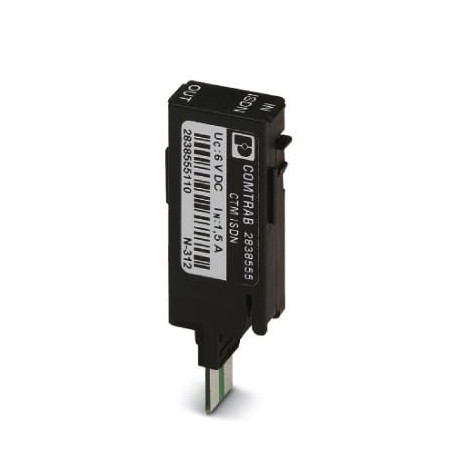

CTM ISDN 2838555 PHOENIX CONTACT Surge protection plug
$0.00USD
4997 in stock
Key Specifications
GTIN:4017918819583
Note:Made to Order (non-returnable)
Orderkey:2838555
(General):D1 - 1 kA
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4017918819583 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2838555 |
| (General) | D1 - 1 kA |
| Catalog page | Page 167 (C-4-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 85363010 |
| (Ambient conditions) | IEC 60664-1 |
| Rated current (General) | 1.5 A (25 °C) |
| Type (Ambient conditions) | LSA-PLUS module |
| Color (Ambient conditions) | black |
| Depth (Key Commercial Data) | 53.5 mm |
| Width (Key Commercial Data) | 9.5 mm |
| Height (Key Commercial Data) | 21 mm |
| Nominal voltage UN (General) | 6 V DC |
| Capacity (line-line) (General) | 25 pF (f=1 MHz / VR= 0 V) |
| Residual current IPE (General) | ≤ 2 µA |
| VDE requirement class (General) | B2 |
| Degree of protection (Dimensions) | IP20 |
| IEC test classification (General) | B2 |
| Mounting type (Ambient conditions) | On CT-TERMIBLOCK and LSA-PLUS disconnect strip |
| Connection method (Connection data) | Spring contact |
| Input attenuation aE, sym. (General) | 0.3 dB (≤ 45 MHz) |
| Weight per Piece (excluding packing) | 9.090 g |
| Housing material (Ambient conditions) | PA |
| Response time tA(line-line) (General) | ≤ 500 ns |
| Connection method (Protective circuit) | can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS disconnect and switching strips |
| Response time tA(line-earth) (General) | ≤ 100 ns |
| Maximum continuous voltage UC (General) | ± 6 V DC |
| Degree of pollution (Ambient conditions) | 2 |
| Direction of action (Ambient conditions) | Line-Line & Line-Earth Ground |
| Impulse durability (line-line) (General) | C2 - 4 kV / 2 kA |
| Number of positions (Ambient conditions) | 2 |
| Surge protection fault message (General) | none |
| Connection method IN (Protective circuit) | COMTRAB plug-in system |
| Impulse durability (line-earth) (General) | C2 - 4 kV/2 kA |
| Overvoltage category (Ambient conditions) | II |
| Connection method OUT (Protective circuit) | COMTRAB plug-in system |
| Connection technology (Protective circuit) | LSA-PLUS |
| Residual voltage at In(line-line) (General) | ≤ 32 V |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 75 °C |
| Residual voltage at In(line-earth) (General) | ≤ 55 V |
| Voltage protection level Up(line-line) (General) | ≤ 35 V (C1 - 700 V/350 A) |
| Voltage protection level Up(line-earth) (General) | ≤ 700 V (C2 - 10 kV/5 kA, spike) |
| Total discharge current Itotal(8/20) µs (General) | 10 kA |
| Total discharge current Itotal(10/350) µs (General) | 2.5 kA |
| Standards/regulations (Connection, equipotential bonding) | IEC 61643-21 |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Nominal discharge current In(8/20) µs (line-line) (General) | 350 A |
| Standards/specifications (Connection, equipotential bonding) | IEC 61643-21 2000 |
| Cut-off frequency fg (3 dB), sym. in 100 Ohm system (General) | ≥ 100 MHz |
| Nominal discharge current In(8/20) µs (line-earth) (General) | 5 kA |
| Nominal pulse current Ian (10/1000) µs (line-line) (General) | 100 A |
| Residual voltage with Ian (10/1000) µs (line-line) (General) | ≤ 18 V |
| Residual voltage with Ian (10/1000) µs (line-earth) (General) | ≤ 12 V |
| Pulse discharge current Iimp(10/350) µs (line-earth) (General) | 1 kA |
| Output voltage limitation at 1 kV/µs (line-line) spike (General) | ≤ 60 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike (General) | ≤ 700 V |
| Output voltage limitation at 1 kV/µs (line-line) static (General) | ≤ 15 V |
| Output voltage limitation at 1 kV/µs (line-earth) static (General) | ≤ 700 V |
| Standards for cearances and creepage distances (Ambient conditions) | DIN VDE 0110-1 |
| Max. discharge current Imax(8/20) µs maximum (line-earth) (General) | 10 kA (in total) |
| Arrester can be tested with CHECKMASTER from software version: (Ambient conditions) | From SW rev. 1.10 |
Product Description
LSA-PLUS (COMTRAB CTM) plug-in protection protection for a pair of conductors of an ISDN So interface.
