CRIMPFOX-TC MP

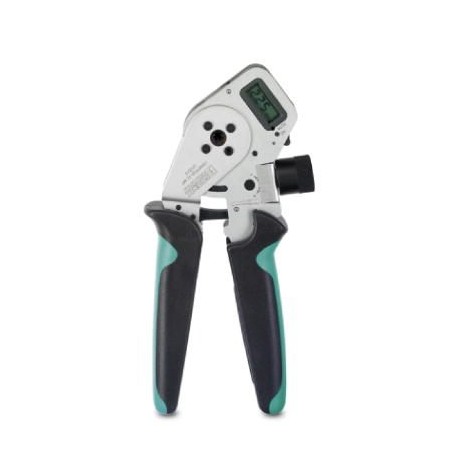

CRIMPFOX-TC MP 1212510 PHOENIX CONTACT Crimping pliers
$0.00USD
4428 in stock
Key Specifications
GTIN:4046356555500
Orderkey:1212510
(General):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Catalog page:Page 436 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356555500 |
| Orderkey | 1212510 |
| (General) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Catalog page | Page 436 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Color (Dimensions) | black |
| Weight (Dimensions) | 850 g |
| AWG max (Dimensions) | 14 |
| AWG min (Dimensions) | 28 |
| China RoHS (General) | Environmentally Friendly Use Period = 50 |
| Custom tariff number | 82032000 |
| Compression (Dimensions) | Four-mandrel crimping |
| Type of contact (Dimensions) | Turned contacts |
| Max. cross section (Dimensions) | 2.5 mm² |
| Min. cross section (Dimensions) | 0.08 mm² |
| Length (b) (Key Commercial Data) | 175 mm |
| California Proposition 65 (General) | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
| Weight per Piece (excluding packing) | 99.990 g |
Product Description
Crimp clamp for machined contacts, universal section adjustment, up to 2.5 mm² maximum, digital display with 0.01 mm pitch width, unlockable forced lock, including positioning aid
