CRIMPFOX 4 IN 1

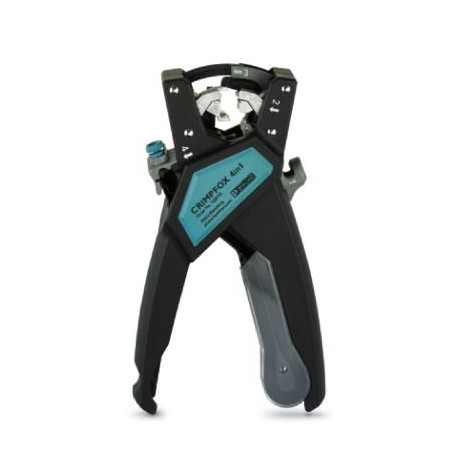

CRIMPFOX 4 IN 1 1200101 PHOENIX CONTACT Multi-function tool
$0.00USD
3988 in stock
Key Specifications
GTIN:4055626042381
Orderkey:1200101
Catalog page:Page 421 (C-3-2017)
Packing unit:1 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626042381 |
| Orderkey | 1200101 |
| Catalog page | Page 421 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Weight (Dimensions) | 240 g |
| AWG max (Dimensions) | 14 |
| AWG min (Dimensions) | 20 |
| Custom tariff number | 82032000 |
| Compression (Dimensions) | Indent crimp |
| Type of contact (Dimensions) | Ferrules |
| Max. cross section (Dimensions) | 2.5 mm² |
| Min. cross section (Dimensions) | 0.5 mm² |
| Width (a) (Key Commercial Data) | 31.5 mm |
| Height (c) (Key Commercial Data) | 100 mm |
| Length (b) (Key Commercial Data) | 180 mm |
| California Proposition 65 (General) | Further information on California's prop. 65 is available under "Downloads" in the manufacturer's declaration |
| Weight per Piece (excluding packing) | 286.300 g |
| Maximum stripping length (Dimensions) | 11 mm |
| Stripping length (Key Commercial Data) | 8 mm |
| AWG max., flexible, multi-strand (Dimensions) | 20 |
| Min. AWG, flexible, multi-strand (Dimensions) | 14 |
Product Description
Tool for processing ferrules according to DIN 46228-4 0.5 mm² up to 2.5 mm² equipped with forced lock, loader, cutting, peeling, braiding and crimping unit.
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
