CF 500/DIE TC4
CF 500/DIE TC 4 1212237 PHOENIX CONTACT Replacement die
$0.00USD
4659 in stock
Key Specifications
GTIN:4046356449816
Note:Made to Order (non-returnable)
Orderkey:1212237
Catalog page:Page 511 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356449816 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1212237 |
| Catalog page | Page 511 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 84799070 |
| Compression (Dimensions) | Square crimp |
| Max. cross section (Dimensions) | 4 mm² |
| Min. cross section (Dimensions) | 0.14 mm² |
| Cable diameter (Key Commercial Data) | 0.5 mm ... 2.4 mm |
| Weight per Piece (excluding packing) | 67.700 g |
Product Description

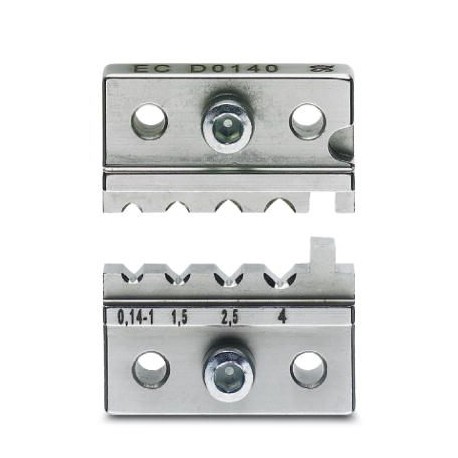

Die for CF 500 automatic crimper, for machined contacts with shank diameter 2.5 and 4.0 mm (CK 2.5 ... CK 4.0) 0.14 ... 4 mm²
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
