CF 1000-10

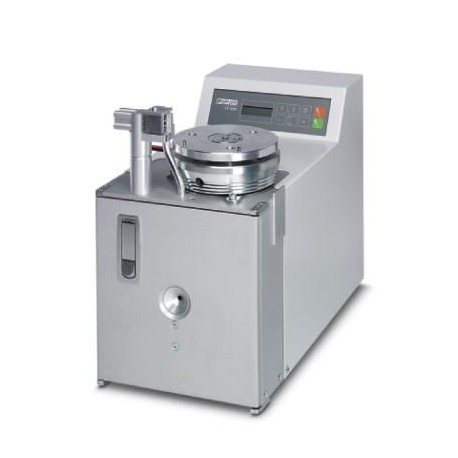

CF 1000-10 1212456 PHOENIX CONTACT Electrical crimping tool
$0.00USD
4528 in stock
Key Specifications
GTIN:4046356526883
Note:Made to Order (non-returnable)
Orderkey:1212456
Catalog page:Page 519 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356526883 |
| Note | Made to Order (non-returnable) |
| Orderkey | 1212456 |
| Catalog page | Page 519 (C-3-2017) |
| Packing unit | 1 pc |
| Country of origin | DE (Germany) |
| Weight (Dimensions) | 29 kg |
| Custom tariff number | 84798100 |
| Test standard (General) | DIN 46228-4: 1990-09 |
| Compression (Dimensions) | trapezoidal |
| Test standard (Dimensions) | DIN 46228-4: 1990-09 |
| Pressure range (Dimensions) | 5 bar ... 6 bar |
| (Standards and Regulations) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Power consumption (Dimensions) | 70 W |
| Max. cross section (Dimensions) | 10 mm² |
| Min. cross section (Dimensions) | 4 mm² |
| Width (a) (Key Commercial Data) | 250 mm |
| Height (c) (Key Commercial Data) | 412 mm |
| Length (b) (Key Commercial Data) | 550 mm |
| Weight per Piece (excluding packing) | 28,500.000 g |
| Insertion length minimum (Dimensions) | 40 mm |
| China RoHS (Standards and Regulations) | Environmentally Friendly Use Period = 25; |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Stripping length (Key Commercial Data) | 15.5 mm |
| Air consumption per compression (Dimensions) | 1.2 l |
Product Description
Automatic crimper and wire stripper, input voltage 120-230 V, electro-pneumatic, for loose ferrules with insulating collar, 4 mm², 6 mm² and 10 mm², without retrofit set
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
