CBMC E4 24DC/1-10A IOL

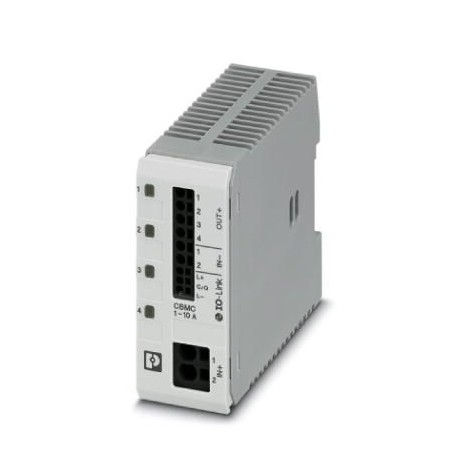

CBMC E4 24DC/1-10A IOL 2910411 PHOENIX CONTACT Electronic device circuit breaker
$0.00USD
3692 in stock
Key Specifications
GTIN:4055626448572
Orderkey:2910411
(General):≤ 29.5 V DC (inactive)
(Interface):two flashes (Channel switched off, device total current limit 40 A exceeded)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626448572 |
| Orderkey | 2910411 |
| (General) | ≤ 29.5 V DC (inactive) |
| (Interface) | two flashes (Channel switched off, device total current limit 40 A exceeded) |
| Packing unit | 1 pc |
| (Dimensions) | 57.6 Hz … 150 Hz (Acceleration 5g; in accordance with IEC 60068-2-6, Test Fc) |
| Country of origin | DE (Germany) |
| (Connection data) | UL 508 |
| (Electrical data) | 3 Byte (Output data) |
| Fuse type (General) | electronic |
| Custom tariff number | 85363030 |
| Efficiency (General) | > 99 % |
| Altitude (Dimensions) | ≤ 2000 m (amsl (above mean sea level)) |
| Rated voltage (General) | 24 V DC |
| Tripping method (General) | E (electronic) |
| Type (Ambient conditions) | DIN rail module, one-piece |
| Color (Ambient conditions) | light grey RAL 7035 |
| Humidity test (Dimensions) | 96 h, 95 % RH, 40 °C |
| Rated current IN (General) | max. 40 A DC (IN+) |
| Channel LED off (Interface) | off (Channel switched off) |
| Channel LED red (Interface) | lit (Channel switched off, over- or undervoltage active) |
| Connection name (Signaling) | Main circuit OUT |
| Depth (Key Commercial Data) | 98 mm |
| Fail-safe element (General) | 15 A DC (per output channel) |
| IO-Link LED off (Interface) | off (No communication) |
| Operating voltage (General) | 18 V DC ... 30 V DC |
| Power dissipation (General) | typ. 0.8 W (No-load operation) |
| Width (Key Commercial Data) | 36 mm |
| Cycle Time (Electrical data) | min. 40 ms |
| Height (Key Commercial Data) | 90 mm |
| Stripping length (Signaling) | 10 mm |
| Channel LED green (Interface) | lit (Channel switched on) |
| Connection method (Signaling) | Push-in connection |
| Dielectric strength (General) | max. 35 V DC (Load circuit) |
| Feedback resistance (General) | max. 35 V DC |
| IO-Link LED green (Interface) | flashing (IO-Link connection exists) |
| Rated surge voltage (General) | 0.5 kV |
| Channel LED yellow (Interface) | lit (Channel switched on, channel load > 80% ) |
| Required backup fuse (General) | not required, integrated failsafe element |
| Shock (operation) (Dimensions) | 30g (IEC 60068-2-27, Test Ea) |
| Temperature derating (General) | 24 A DC (at 60 °C) |
| Measuring tolerance I (General) | ± 15 % |
| Specification (Electrical data) | V1.1 |
| Interface type (Electrical data) | IO-Link |
| Degree of protection (Dimensions) | IP20 |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Vibration (operation) (Dimensions) | 10 Hz ... 57.6 Hz (Amplitude ±0.35 mm; in accordance with IEC 60068-2-6, Test Fc) |
| Closed circuit current I0 (General) | typ. 33 mA |
| IO-Link Device ID (Electrical data) | 393504dec, 06 01 20hex |
| IO-Link Vendor ID (Electrical data) | 176dec, 00 B0hex |
| MTBF (IEC 61709, SN 29500) (General) | 6896552 h (at 25°C with 21% load) |
| Module initialization time (General) | 1.6 s |
| Shutdown time load circuit (General) | ≤ 10 ms (for short circuit > 2.0 x IN) |
| Transmission speed (Electrical data) | 230.4 kbps (COM3) |
| Weight per Piece (excluding packing) | 125.000 g |
| Current consumption (Electrical data) | max. 30 mA (IO-Link L+) |
| Protection class (Ambient conditions) | III |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Conductor cross section AWG (Signaling) | 24 ... 12 |
| Amount of process data (Electrical data) | 8 Byte (Input data) |
| Number of positions (Ambient conditions) | 4 |
| Conductor cross section solid (Signaling) | 0.2 mm² ... 2.5 mm² |
| Standards/specifications (Connection data) | EN 61000-6-2 |
| Max. capacitive load load circuit (General) | 40000 µF (Depending on the current setting and the short-circuit current available) |
| Ambient temperature (operation) (Dimensions) | -25 °C ... 60 °C |
| Undervoltage shutdown load circuit (General) | ≤ 17.8 V DC (active) |
| Reverse polarity protection (Electrical data) | Yes |
| Surge voltage shutdown load circuit (General) | ≥ 30.5 V DC (active) |
| Nominal voltage for I/O supply (Electrical data) | 24 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -40 °C ... 70 °C |
| Waiting time after switch off of a channel (General) | 5 s (at overload / short circuit) |
| Flammability rating according to UL 94 (Ambient conditions) | V-0 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Signaling) | 0.25 mm² ... 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Signaling) | 0.25 mm² ... 2.5 mm² |
Product Description
Multi-channel electronic equipment protection switch with IO-Link interface to protect four consumers in 24 V DC in case of overload and short circuit. With electronic locking of the set rated current
