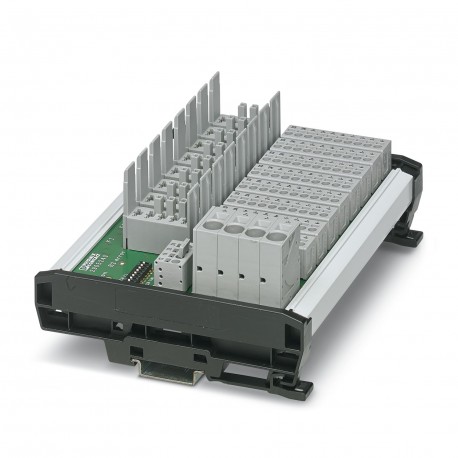

CBB 08 2X4RC-PT
CBB 08 2X4RC-PT 2905240 PHOENIX CONTACT Potential distributors
$0.00USD
4416 in stock
Key Specifications
GTIN:4046356934459
Note:Made to Order (non-returnable)
Orderkey:2905240
(General):12 A DC (per channel)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356934459 |
| Note | Made to Order (non-returnable) |
| Orderkey | 2905240 |
| (General) | 12 A DC (per channel) |
| Catalog page | Page 259 (C-6-2015) |
| Packing unit | 1 pc |
| (Dimensions) | IP00 (PCB) |
| Country of origin | DE (Germany) |
| (Connection data) | DIN EN 60068-2-6 |
| Custom tariff number | 85363090 |
| Type (Ambient conditions) | DIN rail module, two-section, divisible |
| Humidity test (Dimensions) | 96h, 93% RH, 40 °C |
| Depth (Key Commercial Data) | 70.8 mm |
| Power dissipation (General) | 4.9 W (without circuit breaker) |
| Width (Key Commercial Data) | 170 mm |
| Height (Key Commercial Data) | 127.8 mm |
| Rated surge voltage (General) | 0.5 kV |
| Connection name (Electrical data) | Remote signaling X31 |
| Degree of protection (Dimensions) | IP20 (Terminal blocks and fuse holders) |
| Short circuit stability (General) | 600 A (conditional according to DIN EN 50178) |
| Mounting type (Ambient conditions) | DIN rail: 35 mm |
| Stripping length (Electrical data) | 10 mm |
| Connection method (Electrical data) | Push-in connection |
| Rated current main circuit (General) | 60 A DC (total) |
| Rated voltage main circuit (General) | 24 V DC |
| Weight per Piece (excluding packing) | 497.000 g |
| Insertion/withdrawal cycles (General) | 50 |
| Protection class (Ambient conditions) | III |
| REACh SVHC (Standards and Regulations) | Lead 7439-92-1 |
| Degree of pollution (Ambient conditions) | 2 |
| Number of positions (Ambient conditions) | 8 |
| Standards/specifications (Connection data) | DIN EN 50178 1997 |
| Ambient temperature (operation) (Dimensions) | -30 °C ... 60 °C (at 48 A, see derating) |
| Conductor cross section AWG (Electrical data) | 24 ... 12 |
| Overvoltage category_GRP (Ambient conditions) | II |
| Conductor cross section solid (Electrical data) | 0.2 mm² ... 4 mm² |
| Rated current remote indication circuit (General) | 0.5 A DC |
| Rated voltage remote indication circuit (General) | 24 V DC |
| Ambient temperature (storage/transport) (Dimensions) | -30 °C ... 80 °C |
| Flammability rating according to UL 94 (Ambient conditions) | V0 |
| Conductor cross section, flexible, with ferrule, with plastic sleeve (Electrical data) | 0.25 mm² ... 1.5 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve (Electrical data) | 0.25 mm² ... 2.5 mm² |
Product Description
Equipment protection switch plates for eight circuit breakers (CB TM1...) or electronic (CB E1... NO) with collective remote indication, central power supply, connection for relay contacts and potenti
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
