C-RCEI 1,5/M5

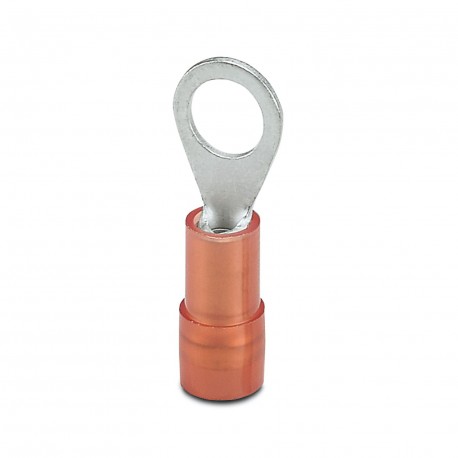

C-RCEI 1,5/M5 3241204 PHOENIX CONTACT Ring cable lug
$0.00USD
3424 in stock
Key Specifications
Fuse:yes
Color:red (RAL 3001)
Width:8 mm
Coating:tin-plated
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Fuse | yes |
| Color | red (RAL 3001) |
| Width | 8 mm |
| Coating | tin-plated |
| Material | Copper |
| Components | halogen-free |
| Product type | Connector |
| Sleeve length | 22 mm |
| Article revision | 00 |
| Internal diameter | 5.3 mm |
| Dimensional drawing | |
| Insulating material | PA |
| Short-term temperature | 100 °C |
| Min. material thickness | 0.75 mm |
| Ambient temperature (assembly) | -20 °C ... 100 °C |
| Ambient temperature (operation) | -20 °C ... 105 °C |
| Flammability rating according to UL 94 | V2 |
| Length of the insulating material sleeve | 11 mm |
| Inner dimensions of the insulating collar | 4.1 mm |
| Optimum ambient temperature (storage/transport) | 20.00 °C 50.00 % Humidity (RH), store inside sealed original packaging. Avoid direct sunlight and heat. |
| Distance from the center to the insulating material sleeve | 7 mm |
Product Description
Ring wire terminal, red, 0.5 ... 1.5 mm², M5, with integrated copper bushing, for insulation crimping
