ZX-EDA11 2M

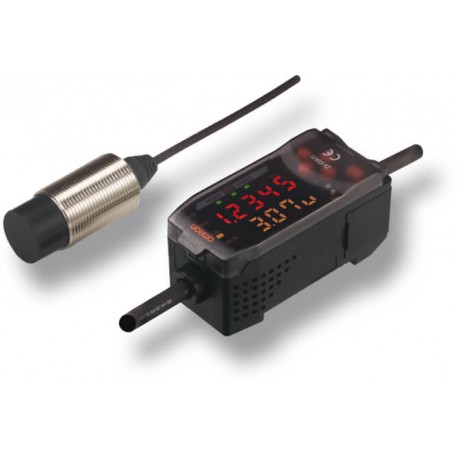

ZX-EDA11 2M ZX 1001G 106186 OMRON Amp. Inductive NPN 3 digit+1 analog outputs
$1,218.38USD
46 in stock
Key Specifications
(Specifications & ordering info):Model
DC (Specifications & ordering info):NPN
1 m (Specifications & ordering info):ZX-XC1A
4 m (Specifications & ordering info):ZX-XC4A
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| (Specifications & ordering info) | Model |
| DC (Specifications & ordering info) | NPN |
| 1 m (Specifications & ordering info) | ZX-XC1A |
| 4 m (Specifications & ordering info) | ZX-XC4A |
| 8 m (Specifications & ordering info) | ZX-XC8A |
| PNP (Specifications & ordering info) | ZX-EDA41 |
| Flat (Specifications & ordering info) | 30×14×4.8 mm |
| Item (Specifications & ordering info) | ZX-EDA11 |
| Name (Specifications & ordering info) | Model |
| Shape (Specifications & ordering info) | Dimensions |
| Remarks (Specifications & ordering info) | Model |
| Function (Specifications & ordering info) | Measurement value displayset value/output value/resolution displayLinearity adjustment (materials selection)ScalingDisplay reversedisplay OFF modeECO modeNumber of display digit changessample holdpeak holdBottom hold, peak-to-peak holdself-peak holdself-bottom holdAverage holddelay holdzero resetInitial resetlinearity initializationON-delay timerOFF-delay timerone-shot timerprevious value comparisonNon-measurement settingdirect threshold value settingposition teachingAutomatic teachinghysteresis width settingtiming inputsReset inputjudgement output hold inputmonitor focusLinear output correction(A-B) calculations4(A+B) calculations15K-(A+B) calculation4mutual interference prevention4Sensor disconnection detectionzero reset memoryzero reset indicatorKey lock |
| Storage5 (Specifications & ordering info) | -20 to 70°C (with no icing or condensation) |
| Materials (Specifications & ordering info) | Case: PBT (polybutylene terephthalate), cover: Polycarbonate |
| Linearity7 (Specifications & ordering info) | ±0.5% F.S. |
| Accessories (Specifications & ordering info) | Instruction manual |
| Cylindrical (Specifications & ordering info) | 3 dia. × 18 mm |
| Indications (Specifications & ordering info) | Judgement indicators: High (orange), pass (green), low (yellow), 7-segment main digital display (red),7-segment sub-digital display (yellow), power ON (green), zero reset (green), enable (green) |
| Resolution6 (Specifications & ordering info) | 1 µm |
| Cable length (Specifications & ordering info) | Model |
| M18×46.3 mm (Specifications & ordering info) | 7 mm |
| Power supply (Specifications & ordering info) | Output type |
| Preamplifier (Specifications & ordering info) | PES |
| Screw-shaped (Specifications & ordering info) | M10×22 mm |
| Sensing object (Specifications & ordering info) | Magnetic metals(Measurement ranges and linearities are different for non-magnetic metals. Refer to engineering data on B-67.) |
| 8 dia. × 22 mm (Specifications & ordering info) | 2 mm |
| Linear output13 (Specifications & ordering info) | Current output: 4 to 20 mA/F.S., max. load resistance: 300 ΩVoltage output:±4 V (±5 V, 1 to 5 V14), output impedance: 100 Ω |
| Sensing surface (Specifications & ordering info) | Heat-resistant ABS |
| Ambient humidity (Specifications & ordering info) | Operating and storage: 35% to 85% (with no condensation) |
| Calculating unit (Specifications & ordering info) | ZX-CAL2 |
| 5.4 dia. × 18 mm (Specifications & ordering info) | 1 mm |
| Connection method (Specifications & ordering info) | Prewired (standard cable length: 2 m) |
| Measurement range (Specifications & ordering info) | 0 to 0.5 mm |
| Measurement period (Specifications & ordering info) | 150 µs |
| Ambient temperature (Specifications & ordering info) | Operating and storage: 0 to 50°C (with no icing or condensation) |
| Current consumption (Specifications & ordering info) | 140 mA max. with power supply voltage of 24 VDC (with sensor connected) |
| Dielectric strength (Specifications & ordering info) | 1,000 VAC, 50/60 Hz for 1 min |
| Linear output range (Specifications & ordering info) | Same as measurement range. |
| Power supply voltage (Specifications & ordering info) | 12 to 24 VDC±10%, ripple (p-p): 10% max. |
| Insulation resistance (Specifications & ordering info) | 20 MΩ min. (at 500 DC) |
| Weight (packed state) (Specifications & ordering info) | Approx. 350 g |
| For DIN track mounting (Specifications & ordering info) | ZX-XBE2 |
| Standard reference object (Specifications & ordering info) | 18 × 18 × 3 mm |
| Heat-resistant, cylindrical (Specifications & ordering info) | M12×22 mm |
| Attached to each sensor head (Specifications & ordering info) | ZX-XBE1 |
| Shock resistance (destruction) (Specifications & ordering info) | 300 m/s2, 3 times each in 6 directions (up, down, left, right, forward, backward) |
| Possible average count settings12 (Specifications & ordering info) | 1, 2, 4, 8, 16, 32, 64, 128, 256, 512, 1,024, 2,048, or 4,096 |
| Degree of protection (sensor head) (Specifications & ordering info) | IEC60529, IP65 |
| Vibration resistance (destruction) (Specifications & ordering info) | 10 to 150 Hz with 0.7-mm double amplitude for 80 min each in X, Y, and Z directions |
| Voltage influence(including sensor) (Specifications & ordering info) | 0.5% F.S. of linear output value at ±20% of power supply voltage |
| ZX-series communications interface unit (Specifications & ordering info) | ZX-SF11 |
| Judgement outputs(3 outputs: HIGH/PASS/LOW) (Specifications & ordering info) | NPN open-collector outputs, 30 VDC, 50 mA max.Residual voltage: 1.2 V max. |
| ZX-series sensor setup and logging software (CD-ROM) (Specifications & ordering info) | ZX-SW11EV3 |
| Temperature characteristic9(including amplifier unit) (Specifications & ordering info) | 0.15% F.S./°C |
| ZX-series communications interface unit+ setup software (CD-ROM) (Specifications & ordering info) | ZX-SFW11EV35 |
| Zero reset input, timing input, reset input, judgement output hold input (Specifications & ordering info) | ON: Short-circuited with 0-V terminal or 1.5 V or lessOFF: Open (leakage current: 0.1 mA max.) |
Product Description
Proximity Smart Sensor amplifier and display, selectable voltage/current output, high/pass/low transistor, NPN output model
