ZFKDSA 1,5C-5,0-9

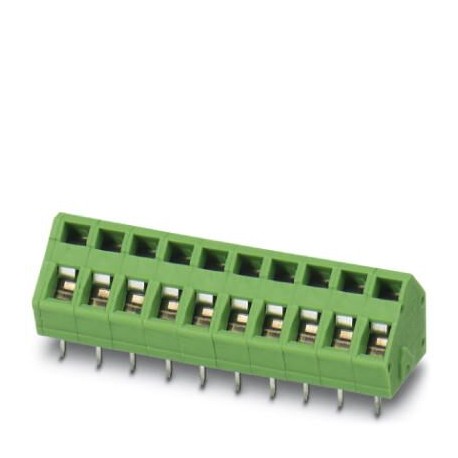

ZFKDSA 1,5C-5,0-9 1054363 PHOENIX CONTACT PCB terminal block ZFKDSA 1,5C-5,0- 9 1054363
$0.00USD
3213 in stock
Key Specifications
GTIN:4055626689920
Orderkey:1054363
Packing unit:1
ETIM 5.0 (eCl@ss):EC002643
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4055626689920 |
| Orderkey | 1054363 |
| Packing unit | 1 |
| ETIM 5.0 (eCl@ss) | EC002643 |
| ETIM 6.0 (eCl@ss) | EC002643 |
| ETIM 7.0 (eCl@ss) | EC002643 |
| Custom tariff number | 85369010 |
| Pitch (Key Commercial Data) | 5 mm |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Height (Key Commercial Data) | 12.75 mm |
| eCl@ss 5.1 (Classifications) | 27261100 |
| eCl@ss 6.0 (Classifications) | 27261100 |
| eCl@ss 7.0 (Classifications) | 27440401 |
| eCl@ss 8.0 (Classifications) | 27440401 |
| eCl@ss 9.0 (Classifications) | 27440401 |
| Number of positions (Dimensions) | 9 |
| Dimension a (Key Commercial Data) | 40 mm |
| Pin spacing (Key Commercial Data) | 5.08 mm |
| Width [ w ] (Key Commercial Data) | 46 mm |
| Height [ h ] (Key Commercial Data) | 16.25 mm |
| Length [ l ] (Key Commercial Data) | 14.1 mm |
| Hole diameter (Key Commercial Data) | 1.1 mm |
| Solder pin [P] (Key Commercial Data) | 3.5 mm |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Flammability rating according to UL 94 (General) | V0 |
| Flammability rating according to UL 94 (Dimensions) | V0 |
Product Description
Terminal block for printed circuit board, nominal current: 16 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 9, number of rows: 1, number of poles per row: 9,
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
PCB terminal block, nominal current: 16 A, nom. voltage: 400 V, pitch: 5 mm, number of positions: 9, connection method: Spring-cage connection, mounting: Wave soldering, conductor/PCB connection direction: 45 °
