ZFKDS 12-V-3,81

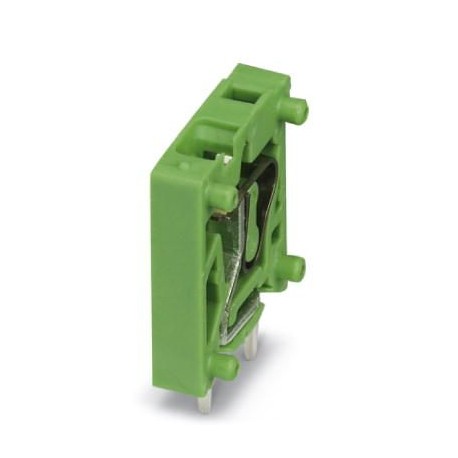

ZFKDS 12-V-3,81 5603057 PHOENIX CONTACT PCB terminal block
$0.00USD
3450 in stock
Key Specifications
GTIN:4046356751667
Orderkey:5603057
Packing unit:1
Custom tariff number:85369010
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356751667 |
| Orderkey | 5603057 |
| Packing unit | 1 |
| Custom tariff number | 85369010 |
| Pitch (Key Commercial Data) | 3.81 mm |
| Height (Key Commercial Data) | 16 mm |
| Stripping length (Dimensions) | 7.5 mm |
| Range of articles (Dimensions) | ZFKDS(A) 1-V |
| Nominal current IN (Dimensions) | 12 A |
| Number of positions (Dimensions) | 12 |
| Dimension a (Key Commercial Data) | 41.91 mm |
| Rated voltage (II/2) (Dimensions) | 400 V |
| Length [ l ] (Key Commercial Data) | 15.9 mm |
| Nominal cross section (Dimensions) | 1 mm² |
| Rated voltage (III/2) (Dimensions) | 200 V |
| Rated voltage (III/3) (Dimensions) | 200 V |
| Hole diameter (Key Commercial Data) | 1.2 mm |
| Solder pin [P] (Key Commercial Data) | 3.5 mm |
| Rated surge voltage (II/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/2) (Dimensions) | 2.5 kV |
| Rated surge voltage (III/3) (Dimensions) | 2.5 kV |
| Conductor cross section AWG max. (General) | 16 |
| Conductor cross section AWG min. (General) | 26 |
| Connection in acc. with standard (Dimensions) | EN-VDE |
| Connection in acc. with standard (Connection data) | EN-VDE |
| 2 conductors with same cross section, stranded max. (General) | 0.2 mm² |
| 2 conductors with same cross section, stranded min. (General) | 0.14 mm² |
Product Description
Printed circuit board terminal, rated current: 12 A, dimensioning voltage (III/2): 200 V, nominal section: 1 mm², Number of potentials: 12, Number of rows: 1, Number of poles per row: 12, item family:
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
