Z-GV-U/4

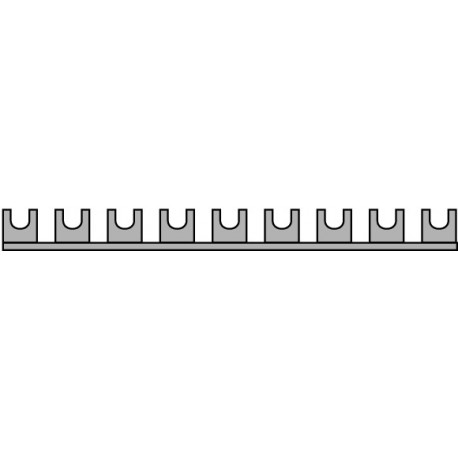

Z-GV-U/4 274080 EATON ELECTRIC Phase busbar, 1ph, 16qmm, fork connector, 4SU
$0.00USD
3973 in stock
Key Specifications
Feature Name:Feature Value
Length (EF001438):18.7 mm
Insulated (EF000019):Yes
Module width (EF007504):17.8 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Length (EF001438) | 18.7 mm |
| Insulated (EF000019) | Yes |
| Module width (EF007504) | 17.8 mm |
| Cross section (EF000649) | 16 mm² |
| Number of poles (EF001391) | 4 |
| Number of phases (EF000351) | 1 |
| Can be cut to size (EF015250) | No |
| Rated surge voltage (EF002993) | 0 kV |
| Rated permanent current Iu (EF001389) | 63 A |
| Type of electric connection (EF003961) | Fork |
| Max. rated operation voltage Ue (EF007357) | 400 V |
| Width in number of modular spacings (EF002950) | 4 |
| Suitable for devices with N-conductor (EF007218) | Yes |
| Rated short-time withstand current lcw (EF007050) | 0 kA |
| Conditioned rated short-circuit current Iq (EF001444) | 0 kA |
| Suitable for devices with auxiliary switch (EF007217) | No |
Product Description
Connection comb, 1ph, 16 mm2, fork, 4SU
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
