XWT-ID16

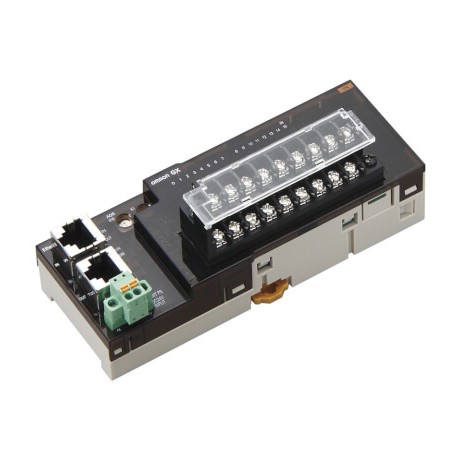

XWT-ID16 XWT 7002F 226541 OMRON Expansion Module 16 NPN Inputs
$0.00USD
3905 in stock
Key Specifications
Unit Type (When speed counts: EtherCAT I/O):Specification
3 port branching uni (When speed counts: EtherCAT I/O):24 VDC, 3 x RJ45
6 port branching unit (When speed counts: EtherCAT I/O):24VDC, 6 x RJ45
16-point NPN input unit (When speed counts: EtherCAT I/O):24 VDC, 6 mA per point
Supplier Information
OMRON
Products: 41472
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Unit Type (When speed counts: EtherCAT I/O) | Specification |
| 3 port branching uni (When speed counts: EtherCAT I/O) | 24 VDC, 3 x RJ45 |
| 6 port branching unit (When speed counts: EtherCAT I/O) | 24VDC, 6 x RJ45 |
| 16-point NPN input unit (When speed counts: EtherCAT I/O) | 24 VDC, 6 mA per point |
| 16-point PNP input unit (When speed counts: EtherCAT I/O) | 24 VDC, 6 mA per point |
| 16-point NPN output unit (When speed counts: EtherCAT I/O) | 24 VDC, 0.5 A per point |
| 16-point PNP output unit (When speed counts: EtherCAT I/O) | 24 VDC, 0.5 A per point |
| 16-point relay output unit (When speed counts: EtherCAT I/O) | 2 A per point, max. 8 A per common |
| 4-Channel analog input unit (When speed counts: EtherCAT I/O) | 1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, |
| 2-Channel analog output unit (When speed counts: EtherCAT I/O) | 1 to 5 V, 1 to 5 V, 0 to 10 V, -10 to 10 V, 4 to 20 mA, |
| 8-point PNP input expansion unit (When speed counts: EtherCAT I/O) | 24 VDC, 6 mA per point |
| 16-point PNP input expansion unit (When speed counts: EtherCAT I/O) | 24 VDC, 6 mA per point |
| 8-point PNP output expansion unit (When speed counts: EtherCAT I/O) | 24 VDC, 0.5 A per point |
| 16-point PNP output expansion unit (When speed counts: EtherCAT I/O) | 24 VDC, 0.5 A per point |
| 1-Channel incremental encoder input (24V) (When speed counts: EtherCAT I/O) | Open collector, up to 125 kHz |
| 8-point input + 8-point output unit (NPN) (When speed counts: EtherCAT I/O) | 24 VDC, input 6 mA, output 0.5 A per point |
| 8-point input + 8-point output unit (PNP) (When speed counts: EtherCAT I/O) | 24 VDC, input 6 mA, output 0.5 A per point |
| 1-Channel incremental encoder input (line driver) (When speed counts: EtherCAT I/O) | RS422 signal level, up to 1 MHz |
Product Description
CRT1/DRT2/GX-series I/O expansion unit, 16 x 24 VDC inputs, NPN (1 max per I/O terminal, specific models only)
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Technical Details
EtherCAT is an extremely fast industrial automation network, which uses standard Ethernet cabling. It makes very efficient use of the standard Ethernet transmission frame, with each node accessing the entire frame on the fly. This reduces the delay in each slave to microsecond level. Its deterministic nature makes EtherCAT extremely suitable for motion control. Omron provides PLC-based as well as stand-alone motion control solutions based on EtherCAT. The GX-series I/O units provide the basic in- and outputs for such systems, including high-speed encoder inputs which can feed position information into the controller.
