In Stock Hot Product
XLC1644

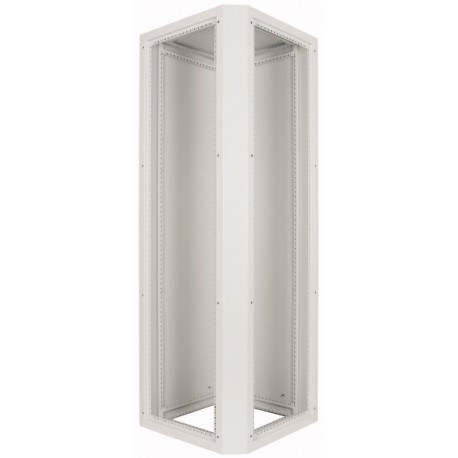

XLC1644 187937 Y7-187937 EATON ELECTRIC Frame corner H 1600 P 400
$0.00USD
4379 in stock
Key Specifications
Feature Name:Feature Value
Depth (EF000049):450 mm
Width (EF000008):450 mm
Colour (EF000007):Grey
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Feature Name | Feature Value |
| Depth (EF000049) | 450 mm |
| Width (EF000008) | 450 mm |
| Colour (EF000007) | Grey |
| Height (EF000040) | 1600 mm |
| Material (EF002169) | Steel |
| Couplable (EF001229) | Yes |
| With door (EF009169) | No |
| RAL-number (EF000116) | 7035 |
| With cover (EF007965) | No |
| EMC-version (EF001062) | Yes |
| Corner model (EF020814) | Yes |
| Freestanding (EF020363) | No |
| Pitched roof (EF009278) | No |
| Pre-stamping (EF001039) | No |
| Pole fastening (EF009582) | No |
| With rear door (EF007381) | No |
| Impact strength (EF004293) | IK10 |
| Number of doors (EF000122) | 0 |
| Number of locks (EF000123) | 0 |
| Material quality (EF001257) | Other |
| With glazed door (EF001089) | No |
| Surface finishing (EF006569) | Powder coated |
| Transparent cover (EF011401) | No |
| With mounting plate (EF000118) | No |
| Intermediate mounting (EF022994) | No |
| With ventilation door (EF006279) | No |
| Degree of protection (IP) (EF005474) | IP55 |
| Floor standing wall model (EF015208) | Yes |
| Suitable for wall built-in (EF007536) | No |
| Suitable for wall mounting (EF000664) | Yes |
| Degree of protection (NEMA) (EF011959) | 4X |
| Suitable for metrical mounting (EF005823) | Yes |
| Mounting plate depth-adjustable (EF006054) | No |
| Max. permissible load of the door(s) according to IEC 62208 (EF014988) | 1000 N |
| Max. permissible load of the enclosure according to IEC 62208 (EF014987) | 5000 N |
| Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 (EF014986) | 0 W |
| Max. permissible load of the mounting plate according to IEC 62208 (EF014989) | 4000 N |
Product Description
XLC1644
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
