X1B/MS1250

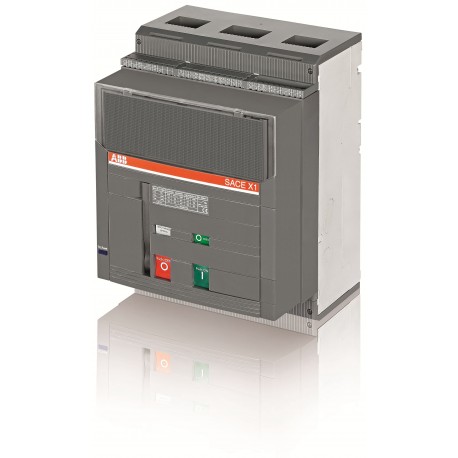

X1B/MS1250 1SDA062056R1 ABB X1B/MS 1250 3p F F
$0.00USD
4911 in stock
Key Specifications
:250 V DC
EAN:8015644646004
UNSPSC:39120000
Version:F
Supplier Information
ABB
Products: 44170
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| 250 V DC | |
| EAN | 8015644646004 |
| UNSPSC | 39120000 |
| Version | F |
| Sub-type | X1 |
| Standards | IEC |
| Power Loss | 124 W |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Current Type | AC |
| Product Name | Switch disconnector |
| Product Type | Switch-disconnector |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Number of Poles | 3 |
| RoHS Information | 9AKK108466A1424 |
| Product Main Type | SACE Emax |
| Product Net Width | 210 mm |
| REACH Declaration | 9AKK108466A1425 |
| Product Net Height | 268 mm |
| Product Net Weight | 11 kg |
| Rated Current (In) | 1250 A |
| Rated Voltage (Ur) | 690 V |
| Package Level 1 EAN | 8015644609139 |
| Customs Tariff Number | 85362090 |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 280 mm |
| Minimum Order Quantity | 1 piece |
| Package Level 1 Height | 350 mm |
| Instructions and Manuals | 1SDH000606R0004 |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Environmental Information | 1SDC200009D0201 |
| Rated Operational Voltage | 690 V AC |
| Object Classification Code | Q |
| Product Net Depth / Length | 181 mm |
| Package Level 1 Gross Weight | 12.5 kg |
| Rated Insulation Voltage (Ui) | 1000 V |
| Declaration of Conformity - CE | 1SDL000165R0018 |
| Package Level 1 Depth / Length | 360 mm |
| Rated Operational Current (Ie) | 1250 A |
| Short-Circuit Performance Level | B |
| Rated Uninterrupted Current (Iu) | 1250 A |
| Data Sheet, Technical Information | 1SDC200009D0203 |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Conflict Minerals Reporting Template (CMRT) | Document availability on demand |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 42 kA |
Product Description
More details
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
