WT-ID HF 2,5X98 BU

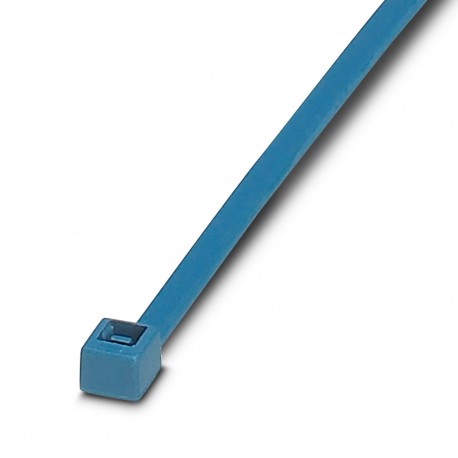

WT-ID HF 2,5X98 BU 3240794 PHOENIX CONTACT Cable tie
$0.05USD
200042 in stock
Key Specifications
GTIN:4046356705226
Orderkey:3240794
Catalog page:Page 663 (C-3-2017)
Packing unit:100 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356705226 |
| Orderkey | 3240794 |
| Catalog page | Page 663 (C-3-2017) |
| Packing unit | 100 pc |
| Country of origin | IT (Italy) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 100 pc |
| Type (Ambient conditions) | Internal teeth |
| Color (Ambient conditions) | blue |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Ambient conditions) | PA 6.6 |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 2.5 mm |
| Length (b) (Key Commercial Data) | 98 mm |
| Short-term temperature (Dimensions) | 110 °C |
| Cable diameter (Key Commercial Data) | 1 mm ... 21 mm |
| Resistance to UV radiation (General) | no |
| Weight per Piece (excluding packing) | 0.310 g |
| Tensile strength (Ambient conditions) | 80 N |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Ambient temperature (assembly) (Dimensions) | -10 °C ... 60 °C |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Flammability rating according to UL 94 (General) | V2 |
| Flammability rating according to UL 94 (Ambient conditions) | V2 |
| Optimum ambient temperature (storage/transport) (Dimensions) | 23 °C 50 % Polyamide 6.6 has pronounced hygroscopic properties. It absorbs or releases water in accordance with the level of humidity within its environment. Its properties are ideal when the percentage of water is 2 - 3%. The packaging, which is tailored specifically to the product concerned, contains the optimum level of moisture.To ensure that the ideal properties are maintained, the following points should be observed during storage: Keep product stored inside sealed original packaging, carry out any product processing soon after breaking open the packaging, avoid direct sunlight, avoid direct heat. |
Product Description
Cable tie detectable using integrated metal pigments for quick and secure attachment
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
