WT-HF 4,5X430

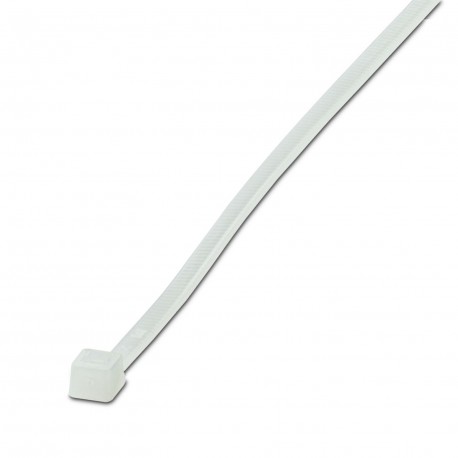

WT-HF 4,5X430 3240770 PHOENIX CONTACT Cable tie
$0.15USD
66714 in stock
Key Specifications
Type:Internal teeth
Color:transparent
Width:4.8 mm
Length:430 mm
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| Type | Internal teeth |
| Color | transparent |
| Width | 4.8 mm |
| Length | 430 mm |
| Material | PA 6.6 |
| Components | free from silicone and halogen |
| Product type | Cable tie |
| Mounting type | Cannot be removed |
| Tensile strength | 220 N |
| Tensile strength GRP | 220 N |
| Short-term temperature | 110 °C |
| External cable diameter | 3.5 mm ... 115 mm |
| Resistance to UV radiation | no |
| Ambient temperature (assembly) | -10 °C ... 60 °C |
| Ambient temperature (operation) | -40 °C ... 85 °C |
| Flammability rating according to UL 94 | V2 |
| Optimum ambient temperature (storage/transport) | 23.00 °C 50.00 % Polyamide 6.6 has pronounced hygroscopic properties. It absorbs or releases water in accordance with the level of humidity within its environment. Its properties are ideal when the percentage of water is 2 - 3%. The packaging, which is tailored specifically to the product concerned, contains the optimum level of moisture.To ensure that the ideal properties are maintained, the following points should be observed during storage: Keep product stored inside sealed original packaging, carry out any product processing soon after breaking open the packaging, avoid direct sunlight, avoid direct heat. |
Product Description
Cable fasteners, standard version, for fast and safe grouping
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
