In Stock Hot Product
WT-BASE HF 5

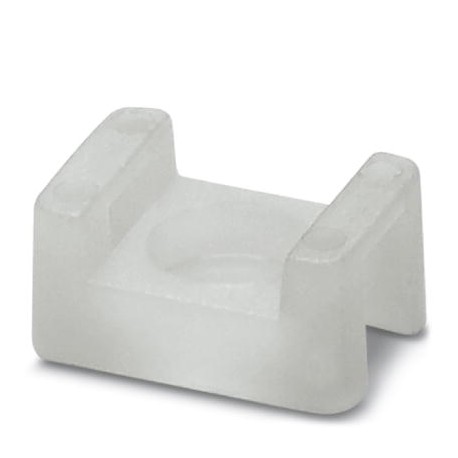

WT-BASE HF 5 3240702 PHOENIX CONTACT Cable binder base
$0.08USD
125045 in stock
Key Specifications
GTIN:4046356703895
Orderkey:3240702
Catalog page:Page 666 (C-3-2017)
Packing unit:100 pc
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356703895 |
| Orderkey | 3240702 |
| Catalog page | Page 666 (C-3-2017) |
| Packing unit | 100 pc |
| Country of origin | TW (Taiwan) |
| Custom tariff number | 39269097 |
| Minimum order quantity | 100 pc |
| Type (Ambient conditions) | Fixing |
| Color (Ambient conditions) | transparent |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Ambient conditions) | PA 6.6 |
| Components (Ambient conditions) | free from silicone and halogen |
| Width (a) (Key Commercial Data) | 9.5 mm |
| Height (c) (Key Commercial Data) | 7 mm |
| Length (b) (Key Commercial Data) | 15 mm |
| Hole diameter (Key Commercial Data) | 3.5 mm |
| Weight per Piece (excluding packing) | 0.600 g |
| Tensile strength (Ambient conditions) | 0 N |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Ambient temperature (assembly) (Dimensions) | -10 °C ... 60 °C |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 85 °C |
| Flammability rating according to UL 94 (General) | V2 |
| Flammability rating according to UL 94 (Ambient conditions) | V2 |
Product Description
Cable tie socket for cable ties up to 5 mm wide, screwable, 3.5 mm clamping hole, 2-sided cable tie wall pass-through
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
