In Stock Hot Product
WP-SPIRAL PU C HF 10

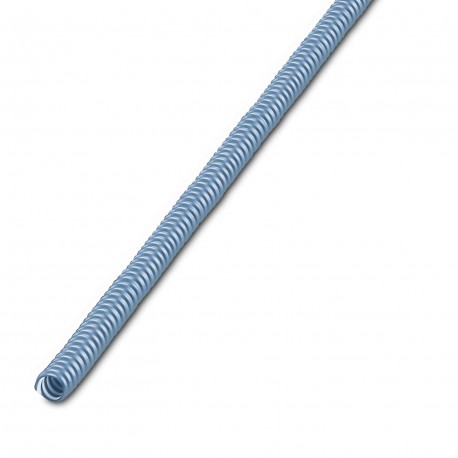

WP-SPIRAL PU C HF 10 3240856 PHOENIX CONTACT Protective hose
$152.05USD
102 in stock
Key Specifications
General:highly flexible
Material:PU
Components:free from silicone, halogen, and cadmium
Halogen-free:yes
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| General | highly flexible |
| Material | PU |
| Components | free from silicone, halogen, and cadmium |
| Halogen-free | yes |
| Product type | Protective hose |
| Material Coil | PUR (sheathed spring steel) |
| Article revision | 00 |
| Outside diameter | 10 mm |
| Tensile strength | 100 N |
| Internal diameter | 7 mm |
| Notes on operation | Protective hose length is measured stretched out; length tolerance ±5% |
| Degree of protection | IP68 |
| Tensile strength GRP | 100 N |
| Bending radius, static | 8 mm |
| Short-term temperature | 120 °C |
| Bending radius, dynamic | 20 mm |
| Resistance to UV radiation | no |
| Ambient temperature (operation) | -40 °C ... 100 °C |
Product Description
Protective tube, material: PU, spiral: PUR-coated spring steel, UV resistant: no, flexible, protection index: IP68, color: blue, inner diameter: 7 mm, Total length: 10 m
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
