In Stock Hot Product

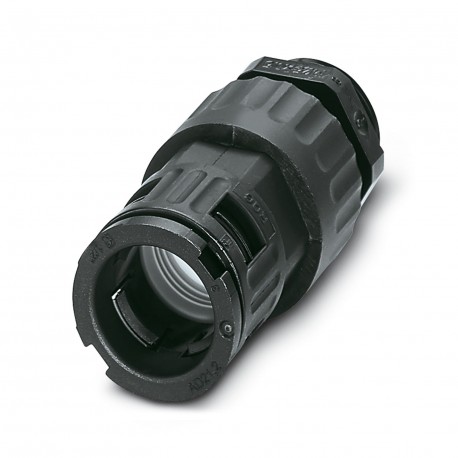

WP-GR HF IP69K M25 BK
WP-GR HF IP69K M25 BK 3240941 PHOENIX CONTACT Screw connection
$12.05USD
868 in stock
Key Specifications
GTIN:4046356710480
Note:Made to Order (non-returnable)
Orderkey:3240941
Catalog page:Page 635 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356710480 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3240941 |
| Catalog page | Page 635 (C-3-2017) |
| Packing unit | 10 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39174000 |
| (Ambient conditions) | Outer thread |
| Halogen-free (General) | yes |
| Minimum order quantity | 10 pc |
| Type (Ambient conditions) | With strain relief |
| Color (Ambient conditions) | black |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Ambient conditions) | PA |
| Components (Ambient conditions) | free from silicone, halogen, and cadmium |
| Width (a) (Key Commercial Data) | 33.5 mm |
| Height (c) (Key Commercial Data) | 70 mm |
| Degree of protection (Dimensions) | IP68/IP69K |
| Wrench size (Key Commercial Data) | 27 mm |
| Cable diameter (Key Commercial Data) | 21.2 mm ... 21.2 mm |
| Weight per Piece (excluding packing) | 29.580 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Outside diameter (Key Commercial Data) | 21.2 mm |
| Connection in acc. with standard (General) | UL |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 115 °C |
| Flammability rating according to UL 94 (General) | V2 |
| Flammability rating according to UL 94 (Ambient conditions) | V2 |
Product Description
Cable gland, metric thread, IP68/69k degree of protection, with cable retainer
