WP-GA HF IP66 M10 BK

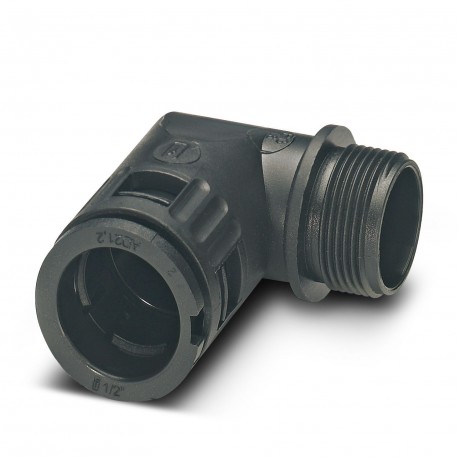

WP-GA HF IP66 M10 BK 3240923 PHOENIX CONTACT Screw connection
$5.68USD
1801 in stock
Key Specifications
GTIN:4046356710305
Note:Made to Order (non-returnable)
Orderkey:3240923
Catalog page:Page 633 (C-3-2017)
Supplier Information
Products: 0
Usually ships within 2-3 business days
Quality Guaranteed
Fast Shipping
Technical Support
Technical Specifications
| Parameter | Value |
|---|---|
| GTIN | 4046356710305 |
| Note | Made to Order (non-returnable) |
| Orderkey | 3240923 |
| Catalog page | Page 633 (C-3-2017) |
| Packing unit | 50 pc |
| Country of origin | DE (Germany) |
| Custom tariff number | 39174000 |
| (Ambient conditions) | Outer thread |
| Halogen-free (General) | yes |
| Minimum order quantity | 50 pc |
| Type (Ambient conditions) | Angled |
| Color (Ambient conditions) | black |
| (Standards and Regulations) | No hazardous substances above threshold values |
| Material (Ambient conditions) | PA |
| Diameter (Key Commercial Data) | 16 mm |
| Components (Ambient conditions) | free from silicone, halogen, and cadmium |
| Width (a) (Key Commercial Data) | 17 mm |
| Height (c) (Key Commercial Data) | 33.5 mm |
| Length (b) (Key Commercial Data) | 34.5 mm |
| Degree of protection (Dimensions) | IP66 |
| Cable diameter (Key Commercial Data) | 10 mm ... 10 mm |
| Weight per Piece (excluding packing) | 6.120 g |
| China RoHS (Standards and Regulations) | Environmentally friendly use period: unlimited = EFUP-e |
| Outside diameter (Key Commercial Data) | 10 mm |
| Connection in acc. with standard (General) | UL |
| Ambient temperature (operation) (Dimensions) | -40 °C ... 115 °C |
| Flammability rating according to UL 94 (General) | V2 |
| Flammability rating according to UL 94 (Ambient conditions) | V2 |
Product Description
Cable gland, metric thread, IP66 degree of protection, angled
Key Features
- Industrial grade quality
- RoHS compliant
- CE certified
- 1-year warranty
Product Documents
Datasheet
Technical specifications and performance data
User Manual
Installation and operation guide
